Separator is a firewood cleaner designed for professional use together with professional models of TITAN firewood processors or other machines for firewood production.

Separator

The Separator firewood cleaner works on a principle of mechanical separating/cleaning. As it is meant to be used for professional firewood production, it allows great efficiency and has high-load capacities. Separator comes in three models with different equipment options. E and ECR models are driven by an electric motor, while the HC model is driven by a hydraulic motor. The E model is controlled via a control box (a mobile console with a 10 m cable is available as an accessory), the ECR/HC model is controlled via a control box and a Tele Radio remote control (option).

Standard:

  • Adjustable height
  • Screen with rollers
  • Electric (remote) control of conveyor belt speed (ECR/HC model)
  • Manual winch to adjust belt tilt from 0 to 40 degrees (ECR/HC model)

Option:

  • loading sink
  • control console 10m (E model)
Control

Control

E and ECR models are driven by an electric motor, while the HC model is driven by a hydraulic motor. The E model is controlled via a control box (a mobile console with a 10 m cable is available as an accessory), the ECR/HC model is controlled via a control box and a Tele Radio remote control (option).

Adjustable belt inclination
Adjustable belt inclination

Manual winch for adjusting belt inclination from 0° to 40°.

Conveyor belt drive
Conveyor belt drive
Screen with rollers
Screen with rollers
Vertical adjustment
Vertical adjustment

Height adjustment and screen tilt option up to 10°.

Holding flap
Holding flap
Remote controller
Remote controller

Electric (remote) conveyor belt speed control for ECR model (option for HC model).

Are you interested?

Locate your nearest Uniforest representative and get an offer.
Sales points Service points


Possible variants

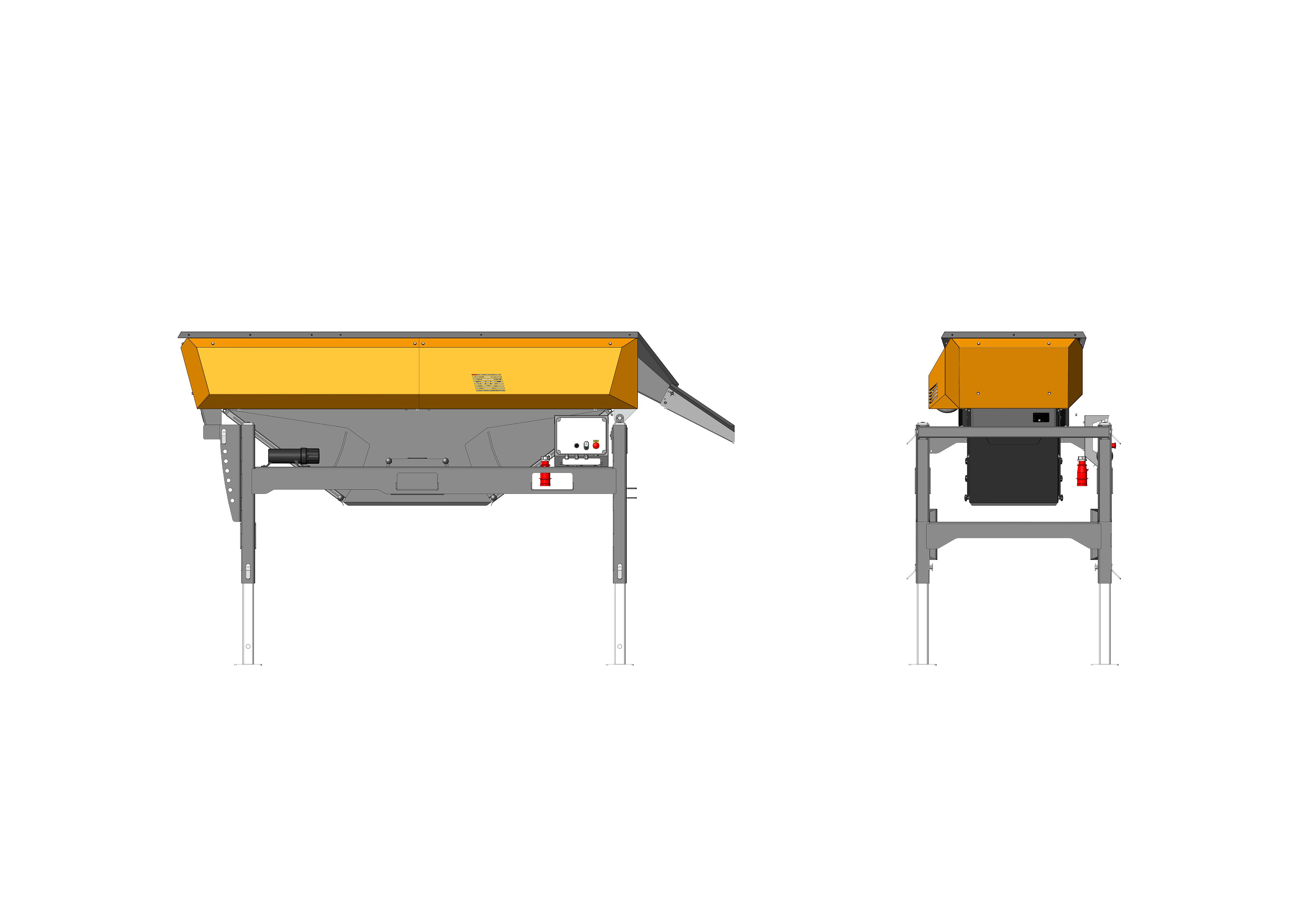

E

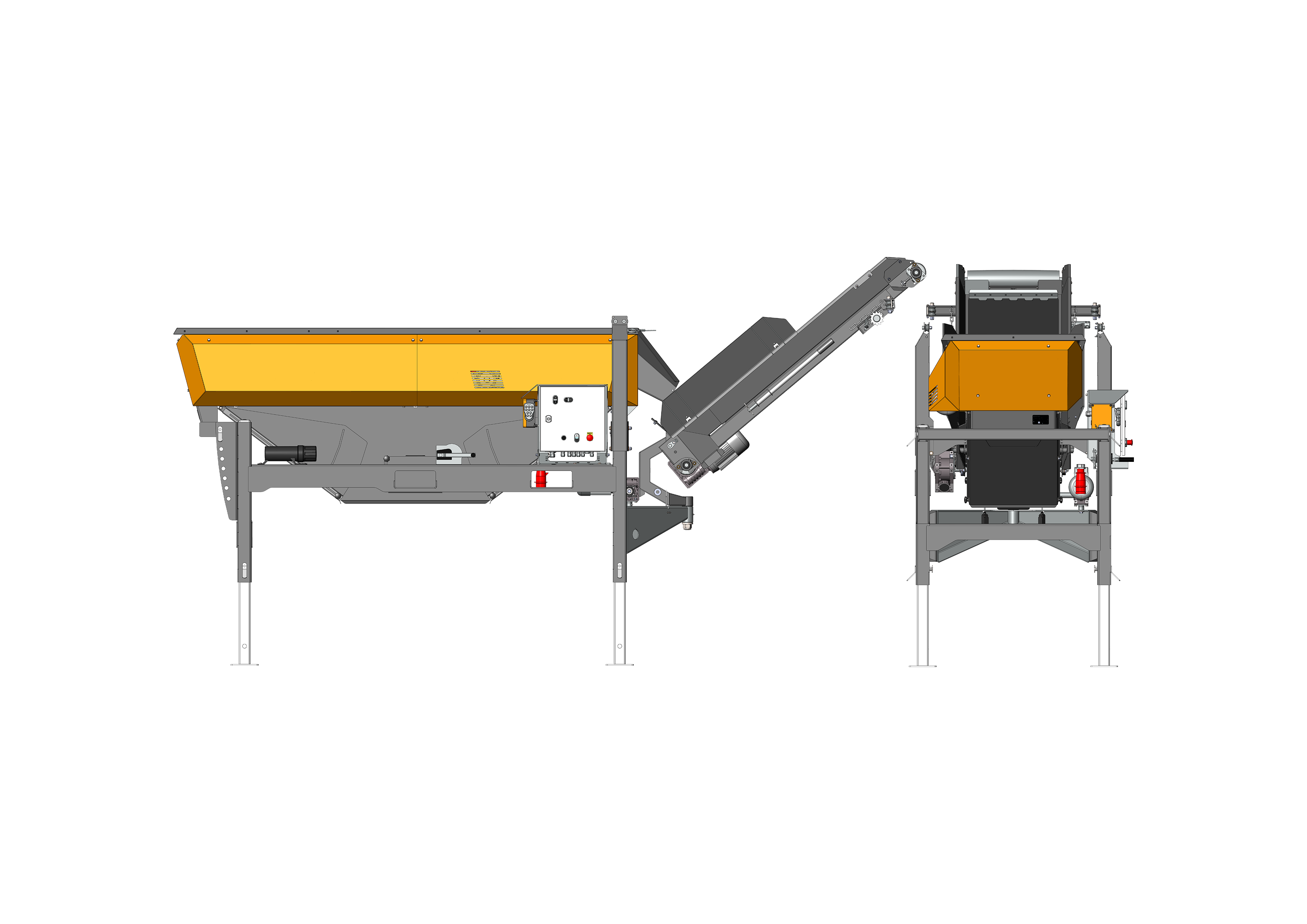

ECR

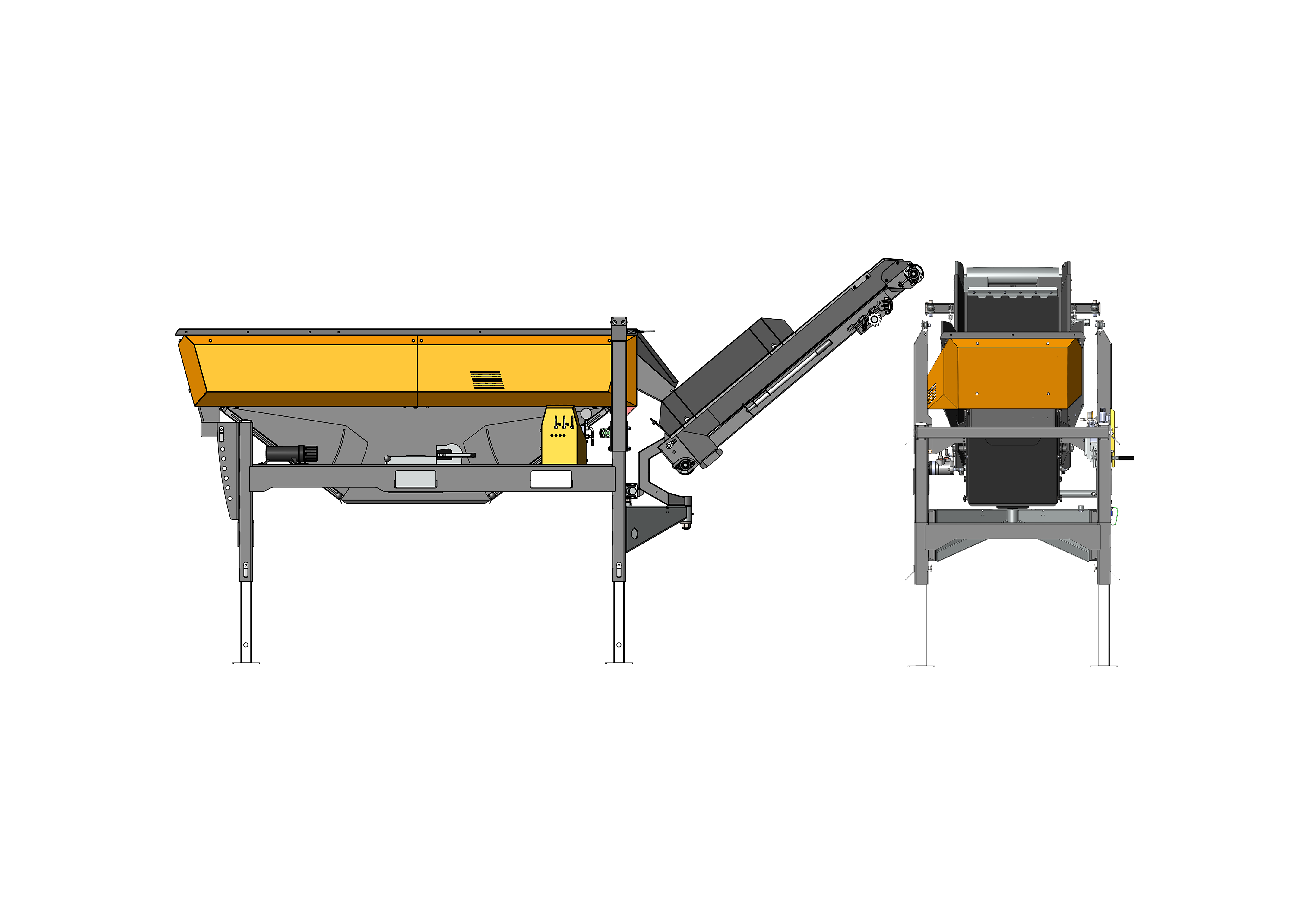

HC

Optional equipment

Loading sink
Loading sink

2400 x 2400mm

Technical data

Model
 SEPARATOR E SEPARATOR ECR SEPARATOR HC
Drive Electric motor Electric motor Hydraulic motor
Rollers motor power (kW) 2.2 2.2 -
Transporter motor power (kW) - 1.5 1.5
Conveyor belt tilt motor power (kW) - 0.75 -
Required hydraulic oil flow (l/min) - - 20
Max. hydraulic oil flow rate (l/min) - - 80
Screen width (mm) 850 850 850
Screen length (mm) 2700 2700 2700
Screen inclination (°) 0–10 0–10 0–10
Rollers speed (min-1) 30-80 30-80 30-80
Number of transport rollers (pcs) 11 11 11
Conveyor belt offset left‐right (°) - 20 20
Conveyor belt width (mm) - 600 600
Conveyor belt length (m) - 3 3
Width (mm) 1290 1370 1370
Length (mm) 3140 3790 3790
Height (mm) 1570–2820 2620–3870 2620–3870
Weight (kg) 955 1530 1505
Accessories
Model
 SEPARATOR E SEPARATOR ECR SEPARATOR HC
Remote controller / ⚫ ⚪
Height regulation (1250mm) ⚫ ⚫ ⚫
Conveyor belt ⚫ ⚫ ⚫
Conveyor belt offset left‐right / ⚫ ⚫
Speed regulation for conveyor belt / ⚫ ⚫
Loading sink 2400 x 2400mm ⚪ ⚪ ⚪
Control console 10m ⚪ / /

● - Standard, ○ - Option, / - Not possible
