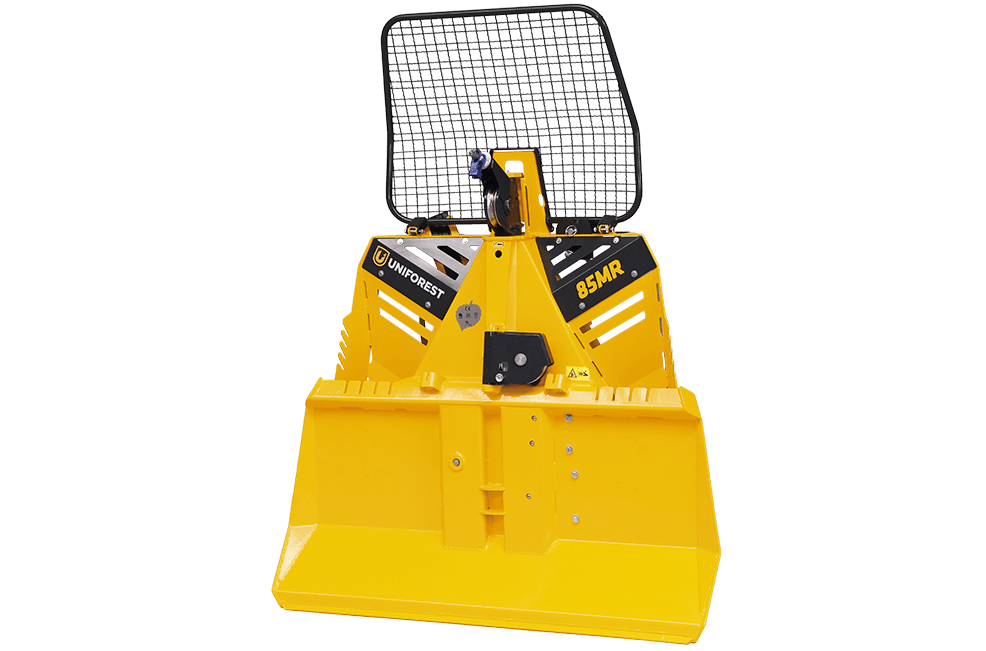

Forestry winch 85 MR

The mechanical forestry winch 85 MR is the largest in its series with a pulling force of 8.5t and for tractors with at least 68 HP.

85 MR

About the machine

Mechanical forestry winch 85 MR with a puling force of 8.5t has large storage spaces on the front of the winch (butt plate) that are patented. The winch has an integrated reduction gear, which allows the same pulling force to be achieved with less tractor power and, consequently, also reduces its consumption. The window guard is foldable, which makes transport easier. A recognizable winch design with a durable construction and a compact butt plate prevents wear and makes it easy to work.

  • Plenty of room on the front side of the butt plate
  • Foldable butt plate
  • Durable construction
  • Superior design with ergonomic shape


Multi-plate clutch

Multi-plate clutch

Multi-plate clutch, made of thicker clutch lining material, prevents wear.

Disc springs
Disc springs

Disc springs ensure precise clutch start and stop.

Hand cord
Hand cord

The hand cord for engaging the pulling mechanism is only 60 cm long. Less force is required to pull the cord for disengaging the brake or achieving full pulling force.

Sealed ball bearings
Sealed ball bearings

Lubrication free sealed ball bearings (FAG) ensure uninterrupted unwinding and winding of the wire rope; no lubrication is required.

Holders
Holders

Chainsaw and pickaxe holder.

Foldable window guard
Foldable window guard

Foldable window guard for easy transportation.

Wire ropes
Wire ropes

Recommended wire rope thickness according to the maximum wire rope length:

  • 13mm/90m

The wire rope must be up to standard, the breaking force of the wire rope must be at least twice as much as the pulling force.

Locking safety pin
Locking safety pin

A locking safety pin ensures the winch rope remains on the pulley. A magnetic holder secures the lower pulley during transportation.

Plenty of room
Plenty of room

Plenty of room on the front side of the butt plate to keep the dirt from tractor wheels away from the chains and other accessories.

Two different heights
Two different heights

Two different heights of attachment to the tractor with a reliable protection preventing the linkage mounting pins from falling out (support leg attachment).

A precise adjustment
A precise adjustment

Easy and precise adjustment of the prebrake.

Durable butt plate
Durable butt plate

Durable butt plate reinforced with wear resistant flat steel.

Are you interested?

Locate your nearest Uniforest representative and get an offer.



Technical data

Model
c
Pulling force (kN) 85
Braking force (kN) 106
Wire rope medium speed (540 min-1) (m/s) 0,6
Drum capacity - wire rope length/diameter (m/mm) 120/12 100/13
Standard wire length/diameter (m/mm) 90/13
Recommended tractor power (kW/hp) min. 50/min. 68
Max. RPM (min-1) 540
Linkage category I, II
Control Mechanical
Number of clutch plates (pcs) 3
Width (mm) 1800
Depth (mm) 780
Height (mm) 1800
Height with window guard (mm) 2300
Weight without wire rope (kg) 571
Accessories
Model
c
Lower pulley
Trailer hitch
Foldable window guard
Chainsaw holder
Pickaxe holder

● - Standard, ○ - Option, / -Not possible
