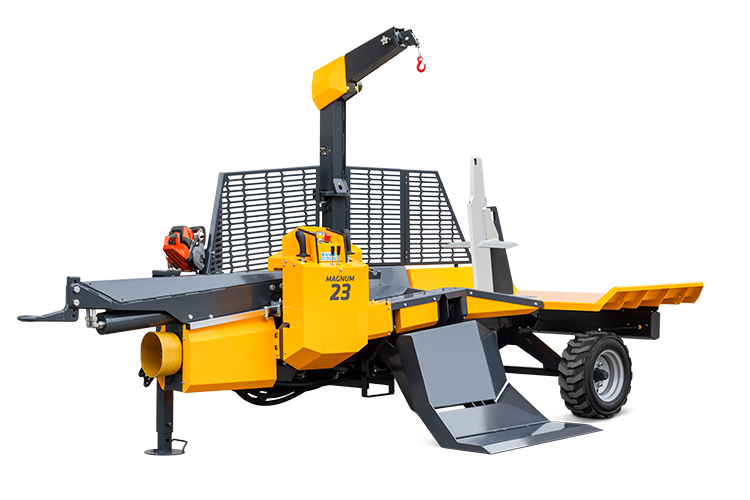

Horizontal log splitter MAGNUM 23 with a splitting force of 21 t can be with a chassis or without it.

Magnum 23

About the machine

Horizonal log splitter MAGNUM 23 with a splitting force of 21 t can split logs up to 1 m in diameter by using a strong pusher plate and BoomSpeed function, which automatically regulates splitting speed. Firewood is than disposed on a large reinforced unloading deck. Mechanical control without any electrical or electronic parts ensures efficient operation under challenging conditions. Considerate design enables easy moves from transport to working position (and vice versa). The log splitter can be with or without chassis.

  • BoomSpeed function
  • Mechanical operation
  • Easily moved from transport to working position
  • Low energy consumption
  • Large unloading deck for firewood

Control Panel

1
Two-handed activation of the push plate/splitting
2
Two-handed activation of the push plate/splitting
3
Movement of the hydraulic lifting table
4
Hydraulic movement of the splitting knife
5
Activation in case of an electric motor drive
6
Manometer for pressure/splitting force display
7
Manometer for displaying auxiliary functions' pressure

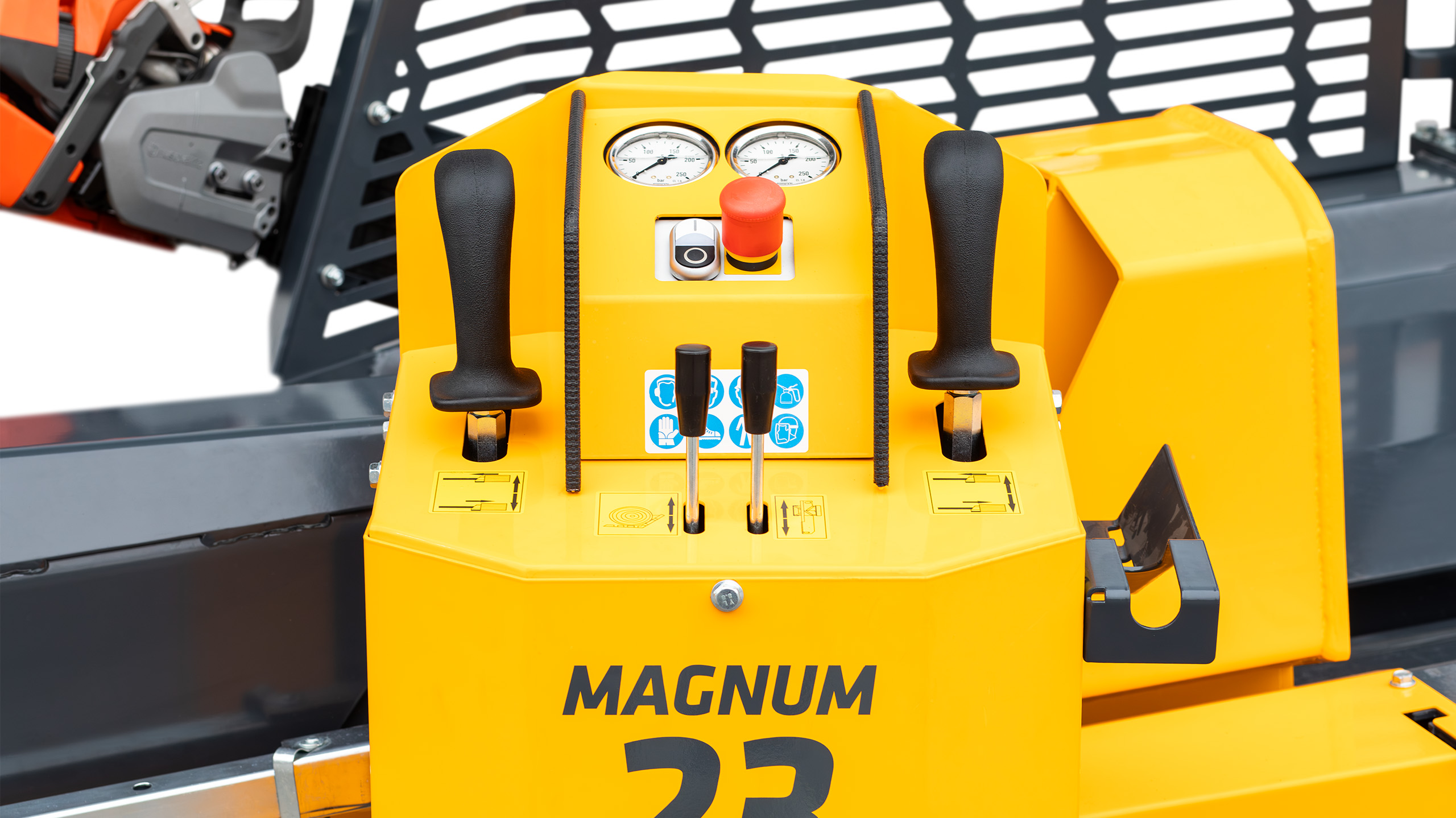

Magnum 23 - control panel
1
2
3
4
5
6
7
Magnum 23 - control panel

Two-handed activation of the push plate/splitting

Two-handed activation of the push plate/splitting

Movement of the hydraulic lifting table

Hydraulic movement of the splitting knife

Activation in case of an electric motor drive

Manometer for pressure/splitting force display

Manometer for displaying auxiliary functions' pressure

Push plate

Push plate

The plastic guides on the push plate are made from a special material that requires no additional lubrication. Precise control of the push plate ensures a long service life. The push plate can be switched off automatically for safer and easier work.

Push plate guard
Push plate guard

Guard for the push plate with cylinder in the transport position.

Chassis
Chassis

Wheels with road safety equipment (option) for easy and safe transport. (For TR models.)

Splitting knife

Splitting knife

Hydraulically adjustable splitting knife 2/4.

Knife holder
Knife holder

Two knife holders for transporting the splitting knives.

Backflush filter
Backflush filter

An integrated backflush filter purifies the oil and ensures a long service life.

Easy movement
Easy movement

Easy movement from transport to working position (and vice versa).

Window guard
Window guard
An adjustable switch-off mechanism
An adjustable switch-off mechanism

An adjustable switch-off mechanism for splitting short logs optimises the required time.

8 possible mounting height settings
8 possible mounting height settings

8 possible mounting height settings enable the log splitter connection to any tractor.

Hydraulic lifter
Hydraulic lifter

Are you interested?

Locate your nearest Uniforest representative and get an offer.
Sales points Service points


Possible variants

MAGNUM 23 CD
MAGNUM 23 E
MAGNUM 23 CD+E
MAGNUM 23 CD TR

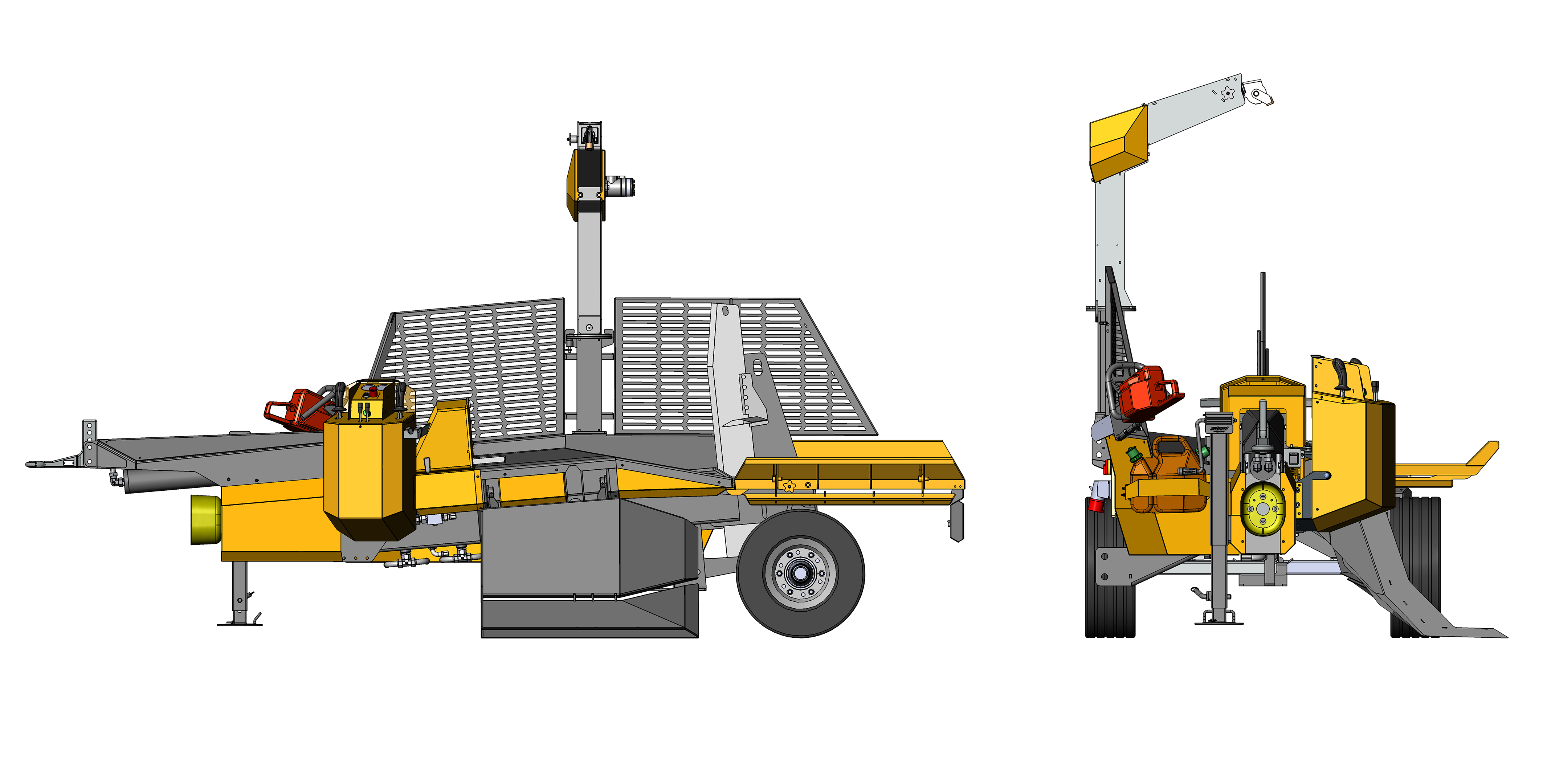

MAGNUM 23 CD+E TR

Optional equipment

Chainsaw holder
Chainsaw holder
Adjustable tank holder
Adjustable tank holder

Adjustable tank holder - suitable for all fuel tank types.

Hydraulic winch with remote control (option):
Hydraulic winch with remote control (option):
  • The wire rope passes through the middle of log splitter
  • Automatic unwinding with wire rope tensioning
  • Sealed ball bearings in rollers (no lubrication needed) for smooth wire FFrope winding and unwinding
Scissor grab
Scissor grab

Scissor grab for pulling and handling heavier logs.

Technical data

Model
 CD E CD+E CD TR CD+E TR
Drive PTO (tractor drive) electric motor PTO (tractor drive)/electric motor PTO (tractor drive) PTO (tractor drive)/electric motor
Splitting force (t) 21 21 21 21 21
Cylinder movement (mm) 1150 1150 1150 1150 1150
Max. log length (mm) 1150 1150 1150 1150 1150
Max. log diameter (mm) 1000 1000 1000 1000 1000
Electric motor power (kW) - 7.5 7.5 - 7.5
Recommended min. tractor power (kW/HP) 35/48 - 35/48 35/48 35/48
Revolutions max. (min-1) 540 - 540 540 540
Linkage category II II II - -
Splitting speed H1/H2/PH (cm/s) 33.6/6.6/33.6 15.3/5.9/30 33.6/6.6/33.6 33.6/6.6/33.6 33.6/6.6/33.6
Splitting time H1/H2/PH (s/1100mm) 3.4/15.2/3.4 7.5/17/3.8 3.4/15.2/3.4 3.4/15.2/3.4 3.4/15.2/3.4
Oil capacity (l) 50 50 50 50 50
Length in working position (mm) 4535 4535 4535 4535 4535
Length in transport position (mm) 2391 2391 2391 4535 4535
Width in working position (mm) 1856 1856 1856 1856 1856
Width in transport position (mm) 1820 1820 1820 1820 1820
Height (mm) 1640 1640 1640 1640 1640
Height with hydraulic winch (mm) 2500 2500 2500 2500 2500
Weight (kg) 1200 1250 1350 1350 1500
Accessories
Model
 CD E CD+E CD TR CD+E TR
BOOMSPEED ⚫ ⚫ ⚫ ⚫ ⚫
Splitting knife 2-4 ⚫ ⚫ ⚫ ⚫ ⚫
Splitting knife 2-6 ⚪ ⚪ ⚪ ⚪ ⚪
Radio controlled hydraulic winch ⚪ ⚪ ⚪ ⚪ ⚪
Oil cooler ⚪ ⚪ ⚪ ⚪ ⚪
Fuel tank holder ⚪ ⚪ ⚪ ⚪ ⚪
Chainsaw holder ⚪ ⚪ ⚪ ⚪ ⚪
Holders for axe, pickaxe, and small pickaxe ⚫ ⚫ ⚫ ⚫ ⚫
Light and safety signs / / / ⚪ ⚪

● - Standard, ○ - Option, / - Not possible

H1 - Quick forward movement of the cylinder

H2 - Forward working movement of the cylinder

PH - Return speed
