Horizontal log splitter
Magnum 32 TR
Horizontal log splitter

Magnum 32 TR

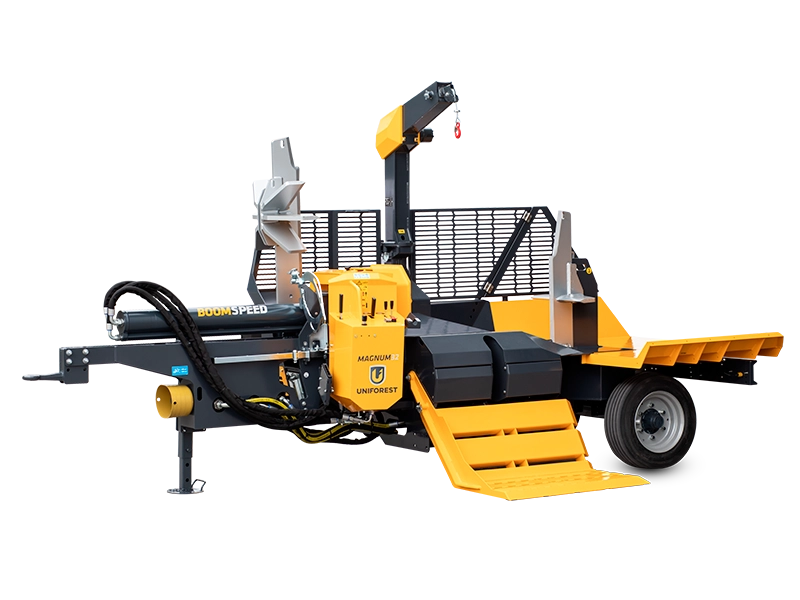

Horizontal log splitter MAGNUM 32 with a splitting force of 31 t has built-in chassis in longitudinal direction (according to the splitting direction).

Magnum 32 TR

About the Machine

Horizonal log splitter MAGNUM 32 TR with a splitting force of 31 t can split logs up to 1 m in diameter by using large pushe plate and BoomSpeed valve, which automatically regulates splitting speed. Firewood is than disposed on a large unloading table. Mechanical control without any electrical or electronic parts ensures efficient operation under challenging conditions. Considerate design enables easy moves from transport to working position (and vice versa).

  • BoomSpeed valve
  • Mechanical operation
  • Easily moved from transport to working position
  • Low energy consumption
  • Large unloading table for firewood
  • Large push plate
  • Backflush filter
  • Built-in chassis

Control panel

1
Two-handed activation of the push plate/splitting
2
Two-handed activation of the push plate/splitting
3
Movement of the hydraulic lifting table
4
Hydraulic movement of the splitting knife
5
Activation in case of an electric motor drive
6
Manometer for pressure/splitting force display
7
Manometer for displaying auxiliary functions' pressure
Magnum 32 - control panel
1
2
3
4
5
6
7
Magnum 32 - control panel

Two-handed activation of the push plate/splitting

Two-handed activation of the push plate/splitting

Movement of the hydraulic lifting table

Hydraulic movement of the splitting knife

Activation in case of an electric motor drive

Manometer for pressure/splitting force display

Manometer for displaying auxiliary functions' pressure

Large push plate

Large push plate

The plastic guides on the push plate are made from a special material which requires no additional lubrication. Precise control of the push plate ensures a long service life. The push plate can be switched-off automatically for safer and easier work.

Push plate guard
Push plate guard

Guard for the push plate with cylinder in the transport position.

Electric motor / oil tank

1
An integrated electric motor with pumps

Optionally integrated electric motor with pumps (11kW).

2
Integrated oil tank

Integrated oil tank featuring a special double bottom and a large oil capacity to prevent spillage. An integrated filter is placed in the oil tank for cleaner oil.

An optional oil cooler prevents hydraulic system overheating (it is recommended when operating the machine continuously for more than 4 hours).

Magnum 32 - electric motor / oil tank
1
2
Magnum 32 - electric motor / oil tank

An integrated electric motor with pumps

Optionally integrated electric motor with pumps (11kW).

Integrated oil tank

Integrated oil tank featuring a special double bottom and a large oil capacity to prevent spillage. An integrated filter is placed in the oil tank for cleaner oil.

An optional oil cooler prevents hydraulic system overheating (it is recommended when operating the machine continuously for more than 4 hours).

Splitting knife

Splitting knife

Hydraulically adjustable splitting knife 2/4, 2/6, 2/8.

Triple-cast iron hydraulic pump
Triple-cast iron hydraulic pump

Triple cast iron hydraulic pump ensures quiet operation and long service life of the log splitter.

Backflush filter
Backflush filter

An integrated backflush filter purifies the oil and ensures a long service life.

Plenty of room
Plenty of room

Easily accessible storage compartments for additional equipment. Integrated holders for axe, pickaxe and mattock. Chainsaw holder possible.

Easy movement
Easy movement

Easy movement from transport to working position (and vice versa).

Window guard
Window guard
Transport attachment
Transport attachment

Transport attachment with an integrated pump.

An adjustable switch-off mechanism
An adjustable switch-off mechanism

An adjustable switch-off mechanism for splitting short logs optimises the required time.

8 possible mounting height settings
8 possible mounting height settings

8 possible mounting height settings enable the log splitter connection to any tractor.

Adjustable tank holder
Adjustable tank holder

Adjustable tank holder - suitable for all fuel tank types.

Are you interested?

Locate your nearest Uniforest representative and get an offer.



Optional equipment

Hydraulic winch with remote control (option):
Hydraulic winch with remote control (option):
  • The wire rope passes through the middle of log splitter
  • Automatic unwinding with wire rope tensioning
  • Pulling speed adjustment valve
Scissor grab
Scissor grab

Scissor grab for pulling and handling heavier logs.

Technical data

Model

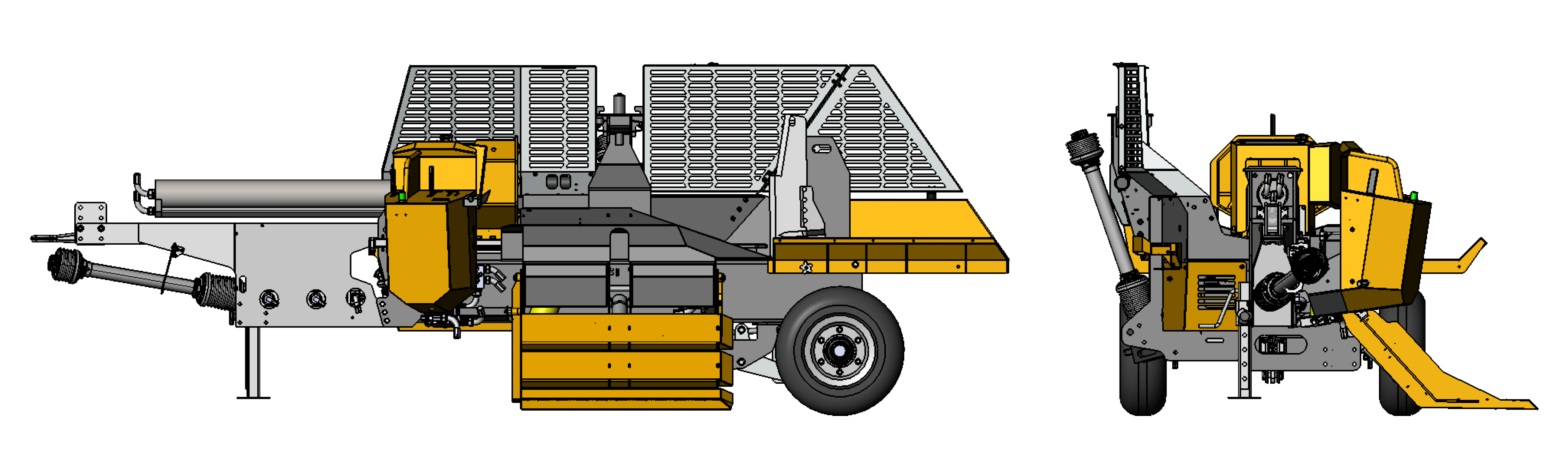

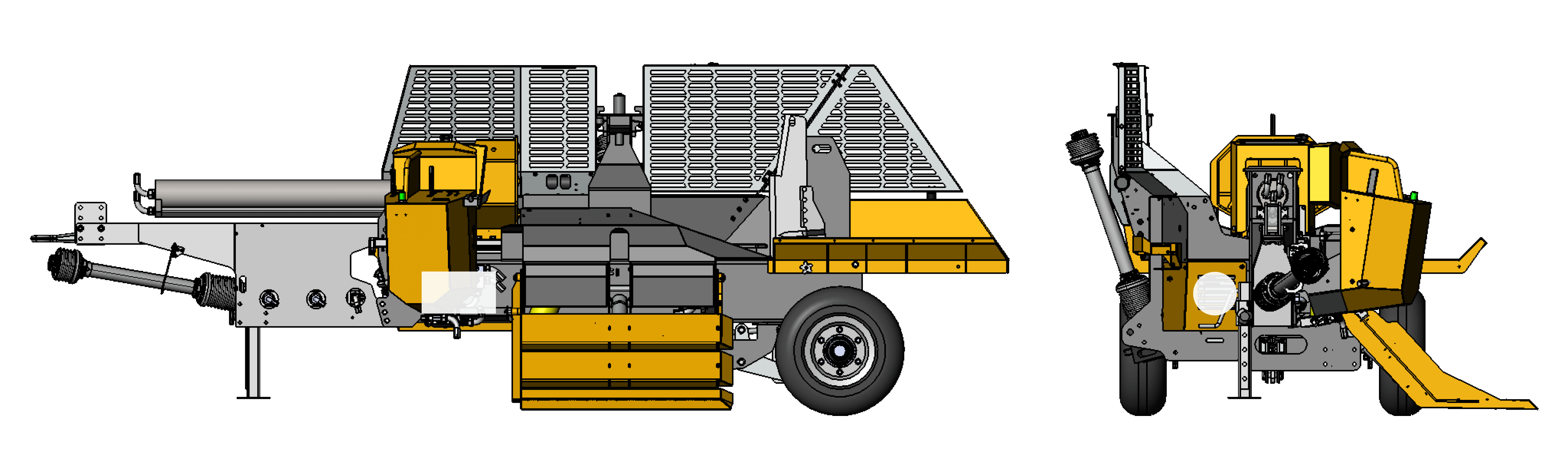

CD TR CD+E TR
Drive PTO (tractor drive) PTO (tractor drive)/electro motor
Splitting force (t) 31 31
Cylinder movement (mm) 1200 1200
Max. log length (mm) 1200 1200
Max. log diameter (mm) 1000 1000
Electromotor power (kW) - 11
Recommended tractor power (kW/hp) 35/48 35/48
Max. RPM (min-1) 540 540
Linkage category II II
Splitting speed H1/H2/PH (cm/s) 38/21/49 38/21/49
Splitting time H1/H2/PH (s/1100mm) 5.2/10.4/5.2 5.2/10.4/5.2
Oil quantity (l) 80 80
Length (mm) 4770 4770
Width in working position (mm) 2140 2140
Width in transport position (mm) 1850 1850
Height (mm) 2250 2250
Height with hydraulic winch (mm) 2470 2470
Weight (kg) 1550 1700
Accessories
Model
CD TR CD+E TR
Cast iron pump
BoomSpeed
Splitting knife 2-4
Splitting knife 2-6
Splitting knife 2-8
Winch 8 HR (remotely controlled)
Oil cooler
Fuel tank holder
Chainsaw holder
Axe holder
Pickaxe and small pickaxe holder
Hitch
Light and safety signs

● - Standard, ○ - Option, / - Not possible

H1 - Quick forward movement of the cylinder

H2 - Forward working movement of the cylinder

PH - Return speed
