TP boxes
Hydraulic TP boxes GIBON
TP boxes

Hydraulic TP boxes GIBON

The hydraulic TP boxes GIBON of various sizes enable easier transportation. Almost all models of hydraulic GIBON series have a double-acting cylinder, except the T-model which has 2 double-acting cylinders.

Hydraulic TP boxes GIBON

Possible variants

120-85H

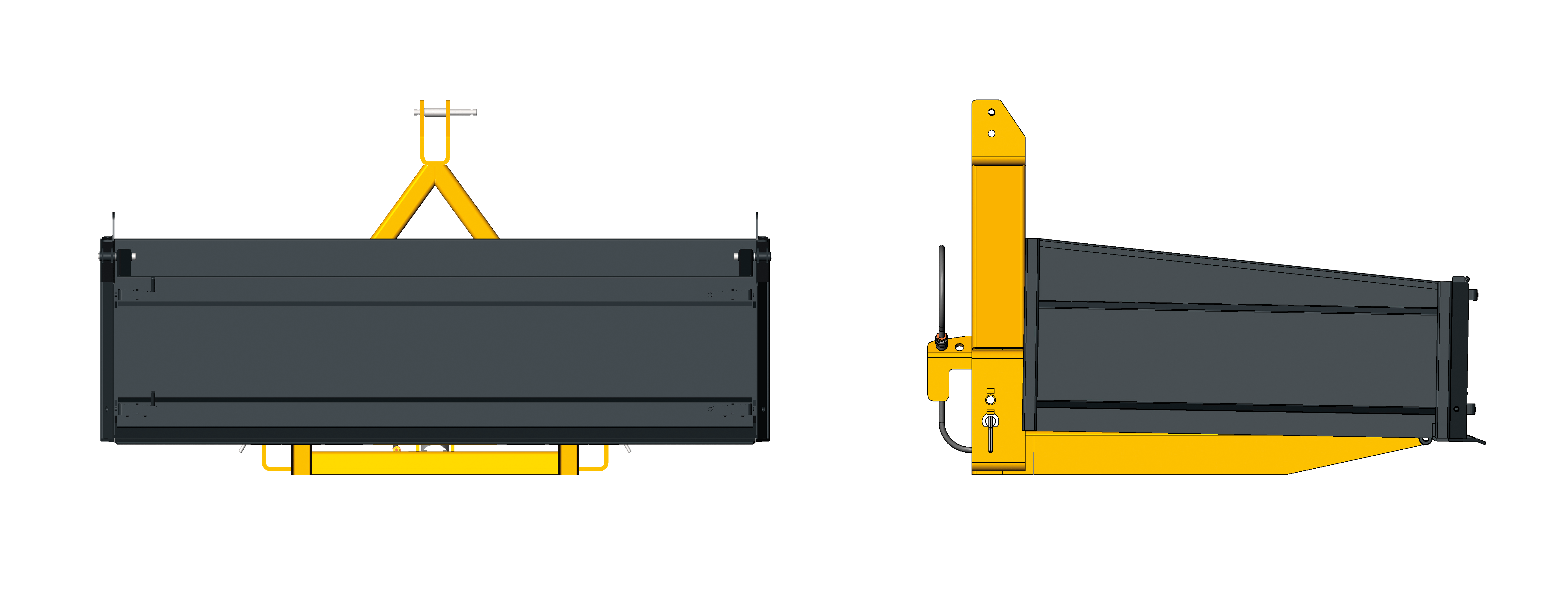

140-85H

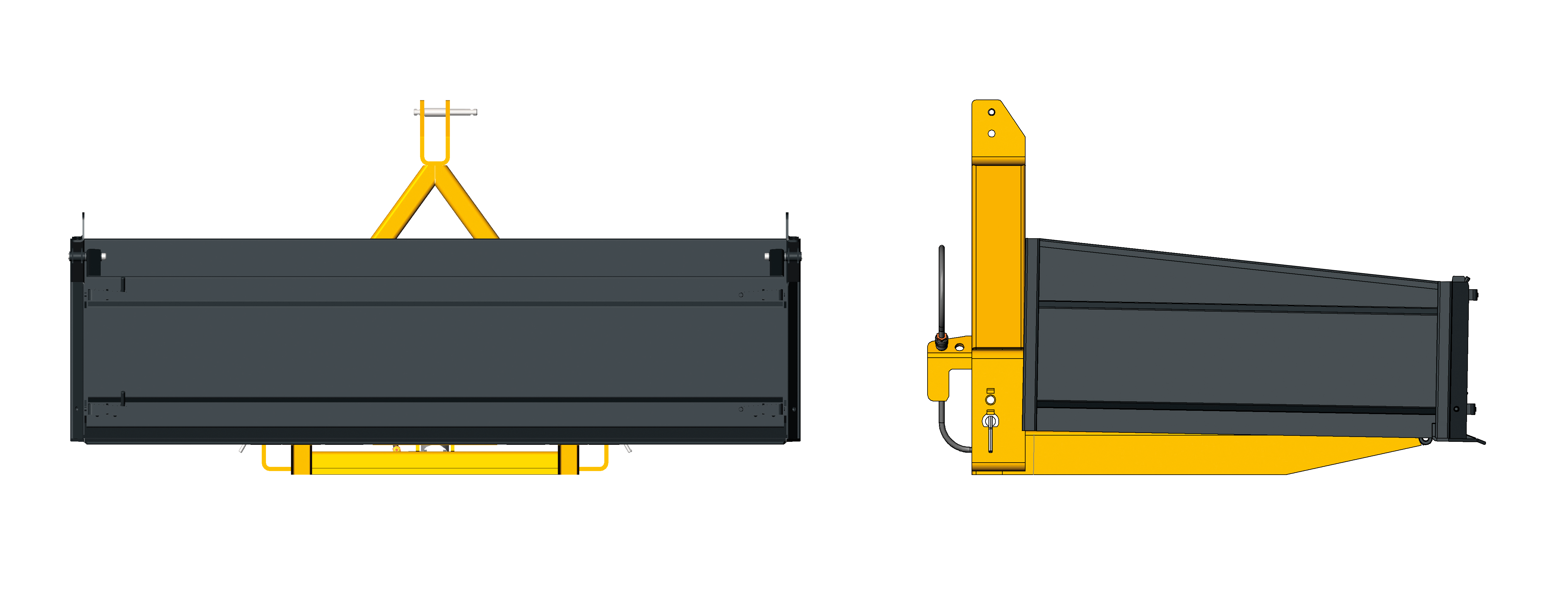

160-85H

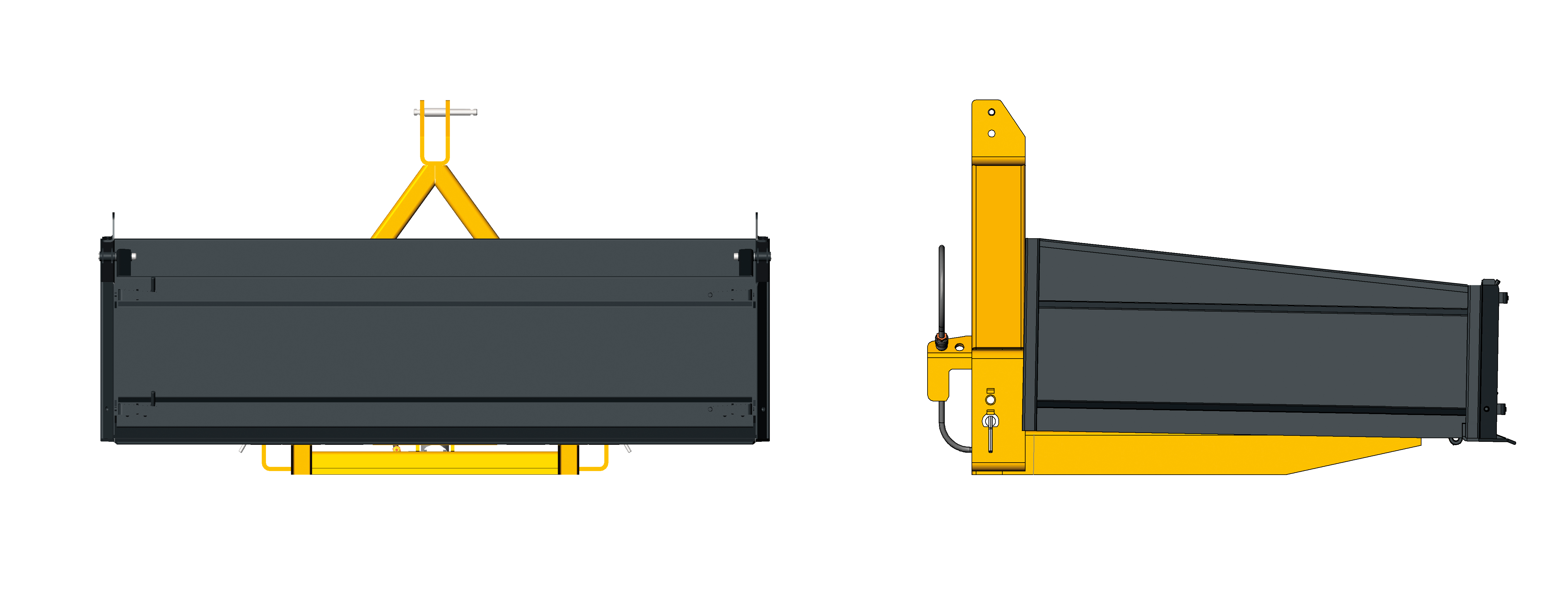

140-100H

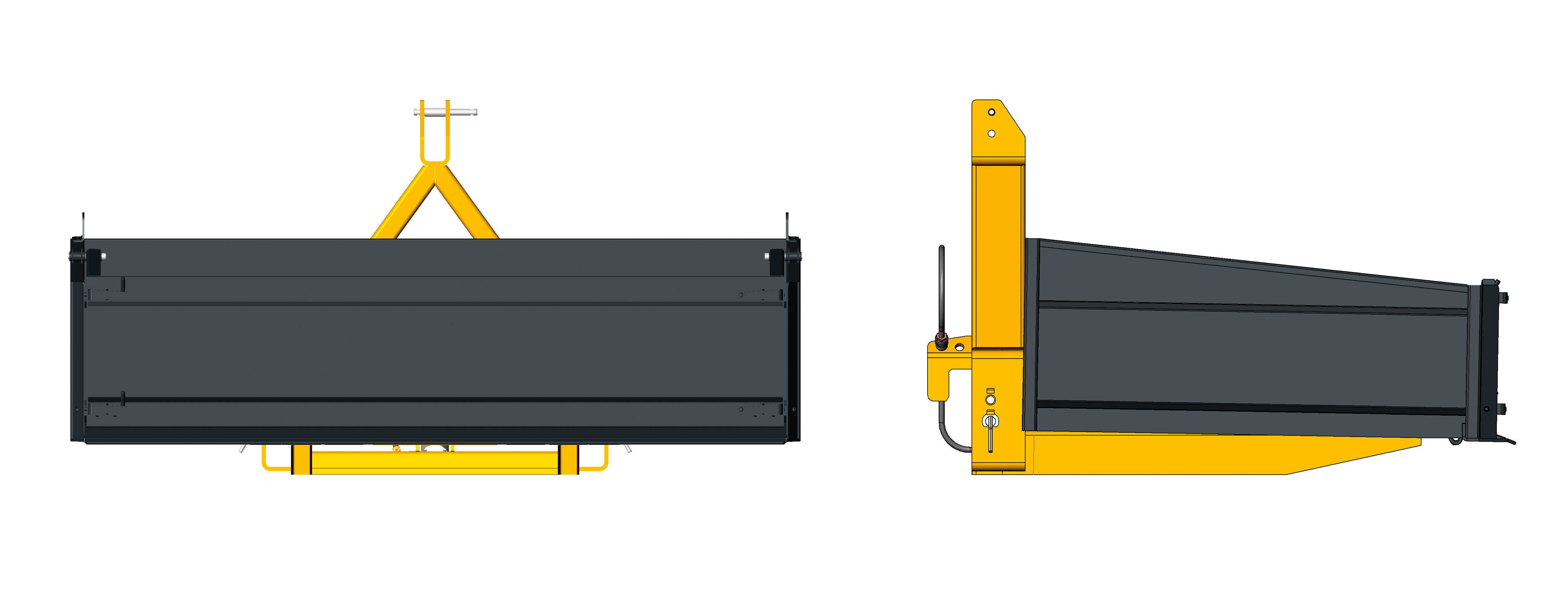

160-100H
180-100H
160-125H

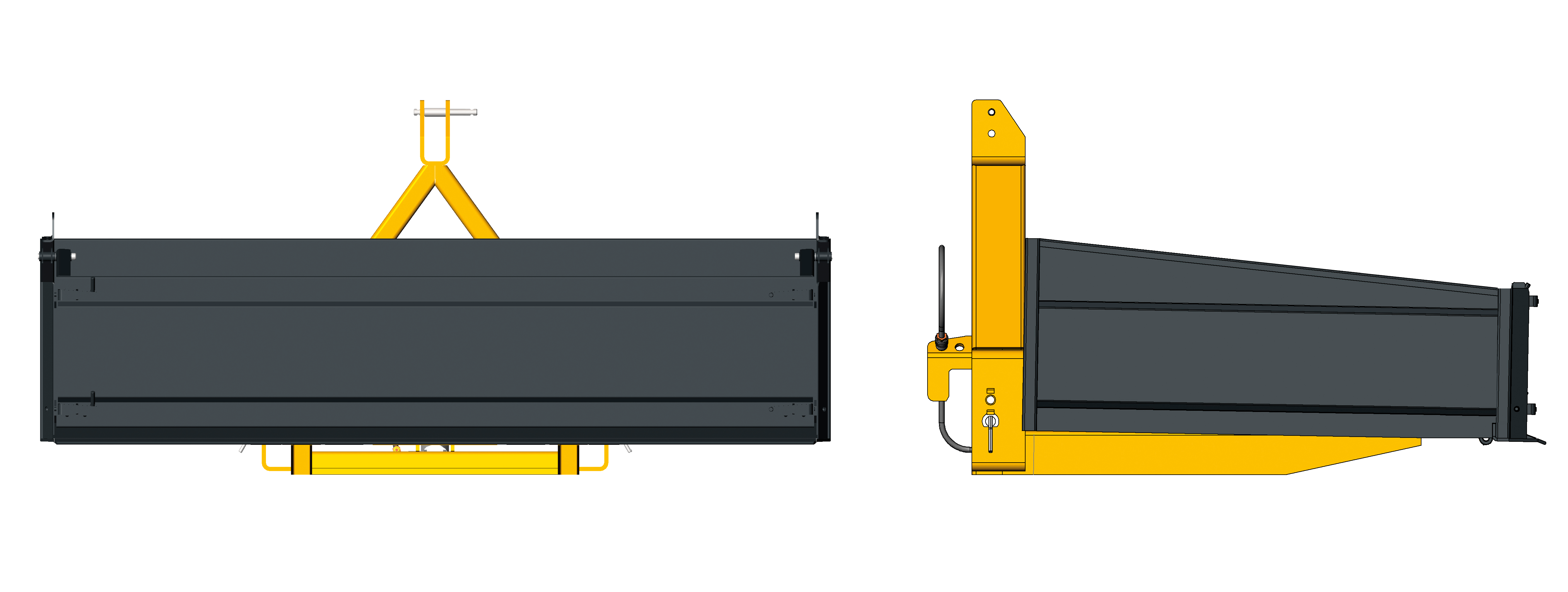

180-125H

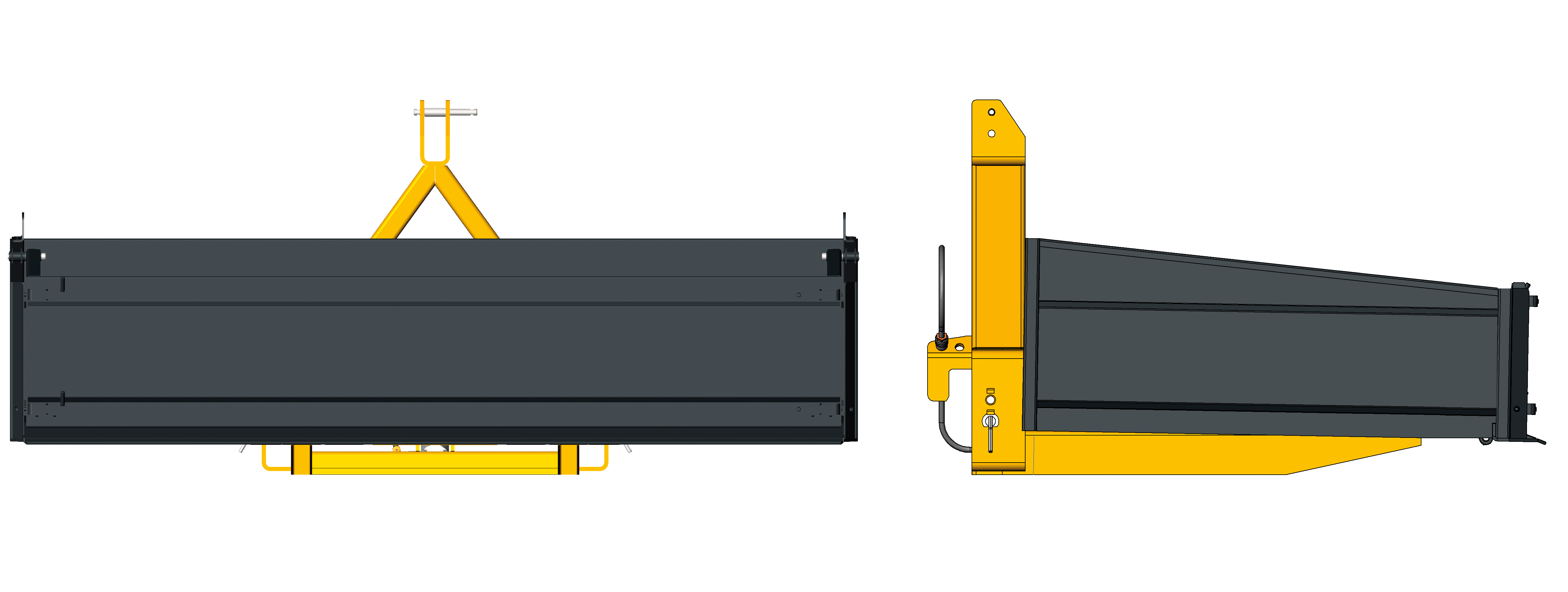

200-125H
200-125H-T

Technical data

Model
 120-85H 140-85H 160-85H 140-100H 160-100H 180-100H 160-125H 180-125H 200-125H 200-125H-T
Load capacity (kg) 500 800 800 900 1200 1400 1300 1400 1400 3500
Width (mm) 1200 1400 1600 1400 1600 1800 1600 1800 2000 2000
Length (mm) 850 850 850 1000 1000 1000 1250 1250 1250 1250
Height (mm) 400 400 400 400 400 400 400 400 400 400
Recommended tractor power (kW/hp) 15–32/20–44 15–32/20–44 15–32/20–44 30–45/40–61 30–45/40–61 30–45/40–61 30–45/40–61 30–45/40–61 30–45/40–61 60–80/88–120
Linkage category I, II I, II I, II I, II I, II I, II I, II I, II I, II I, II
Weight (kg) 160 185 210 250 280 310 310 330 350 420
Accessories
Model
 120-85H 140-85H 160-85H 140-100H 160-100H 180-100H 160-125H 180-125H 200-125H 200-125H-T
Height extension 400mm ⚪ ⚪ ⚪ ⚪ ⚪ ⚪ ⚪ ⚪ ⚪ ⚪

● - Standard, ○ - Option, / -Not possible
