TP boxes
Hydraulic Transport Boxes QUBUS
TP boxes

Hydraulic Transport Boxes QUBUS

Hydraulic TP boxes QUBUS with foldable front walls are of various sizes and enable easier transportation. All models have double-acting cylinders and can be upgraded with the Euro-norm hitch for front loaders.

Qubus

About the machine

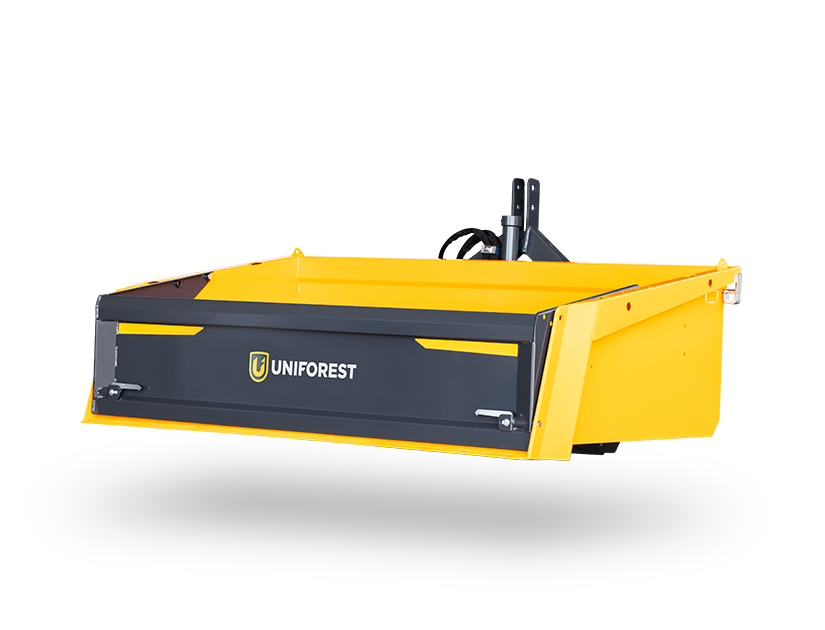

The QUBUS transport box is used for loading, transporting, and unloading firewood or other loads. Hydraulic manipulation of the attachment is enabled by a cylinder protected by a coupling frame, while carefully thought-out details ensure easy and efficient work.

QUBUS is designed with an optimal ratio between weight and load capacity. A powerful and conveniently positioned three-stage telescopic cylinder, a foldable front, a three-point hitch for categories I and II, a front hitch, and the Euro hitch (option) for front loaders enable versatile use on a tractor or other suitable work machine.

  • Hydraulic TP boxes with double-acting cylinder
  • Models with a choice of different widths and lengths
  • Different attachment options

  • Foldable front wall (3 shape options)

Foldable wall

Foldable wall

Three usage options:

  1. Even height of all sides
  2. Extended depth
  3. Raised rear side
Lifting grip
Lifting grip

Grip for lifting the front side along its entire length.

Wall latch
Wall latch

Spring-loaded wall latch.

Reinforced bottom
Reinforced bottom
Holes for fastening strap hooks
Holes for fastening strap hooks
Front attachment
Front attachment

Besides a rear three-point hitch for categories I and II, a front hitch is possible.

Easy loading and scraping
Easy loading and scraping

When lowered, the scraper bar is flush with the ground, which eases loading/scraping.

Unloading
Unloading

The TP box can be tilted to a maximum angle of 86° or 90°. As the platform reaches the vertical position, the elongated (Langloch) mounting slot causes a controlled force impulse that effectively shakes the material out of the box.

Are you interested?

Locate your nearest Uniforest representative and get an offer.
Sales points Service points



Possible variants

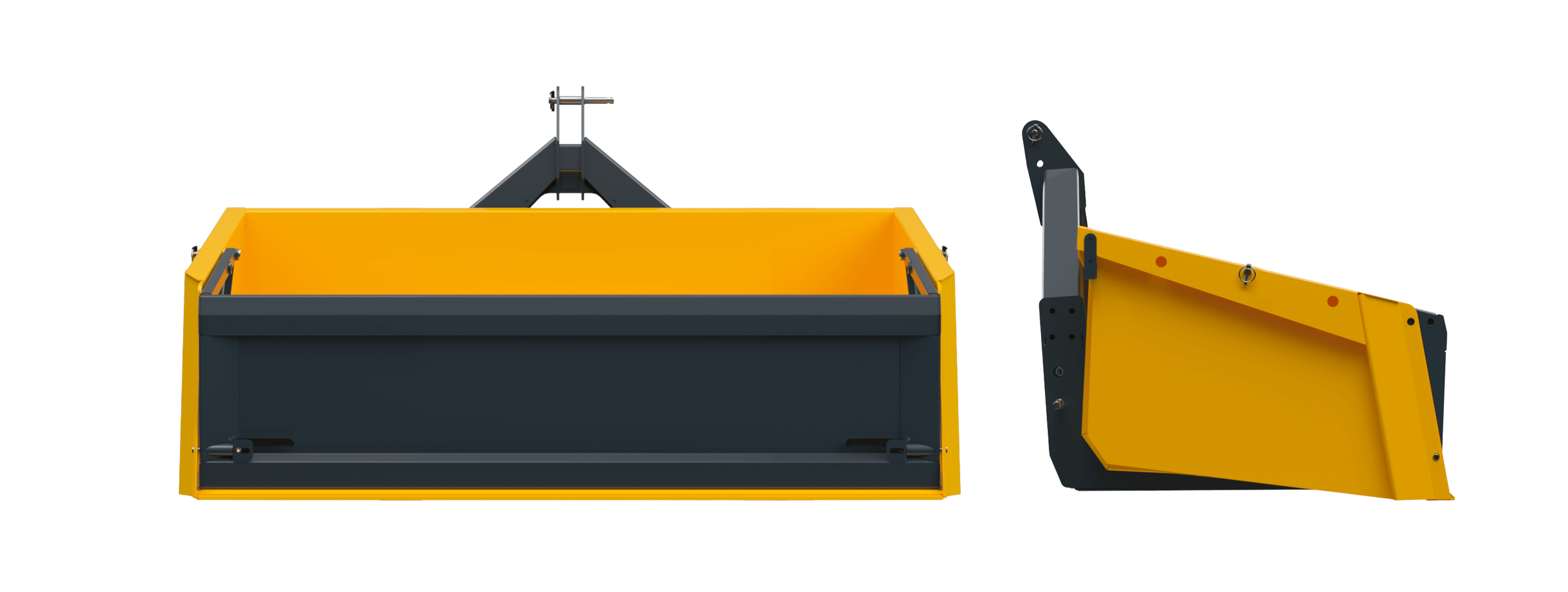

180x100

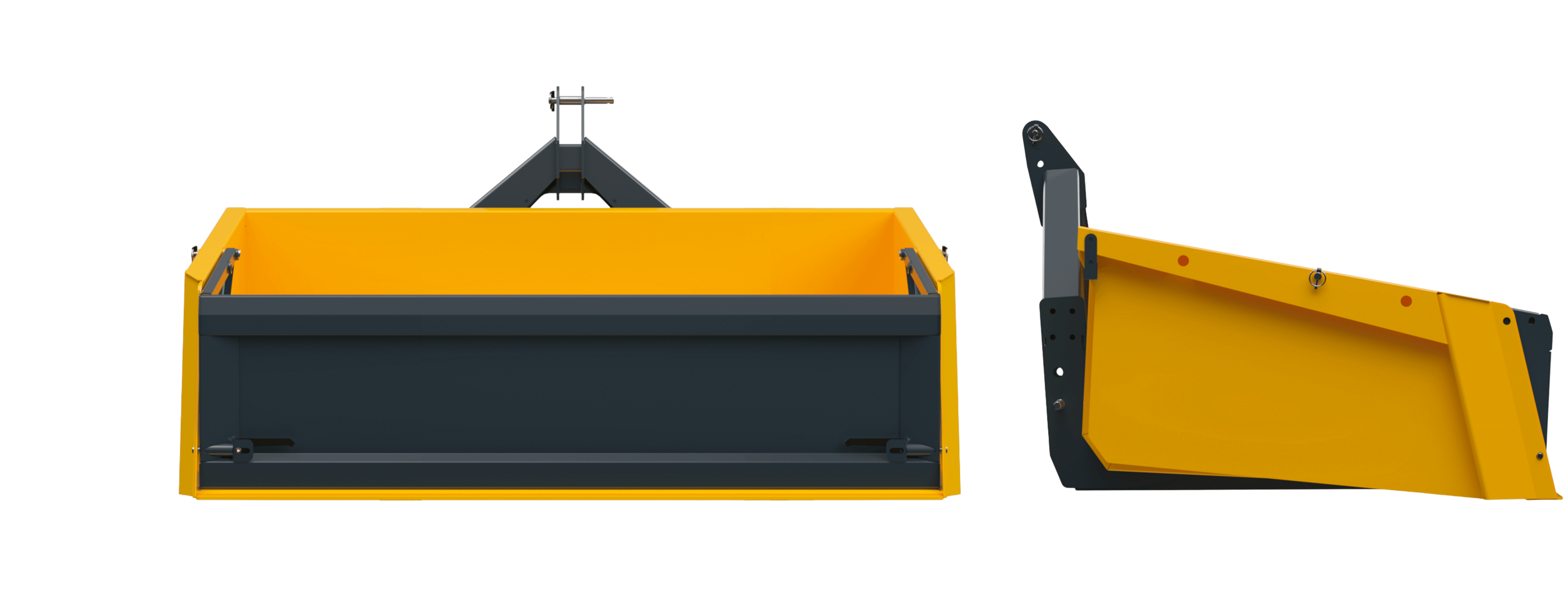

180x125

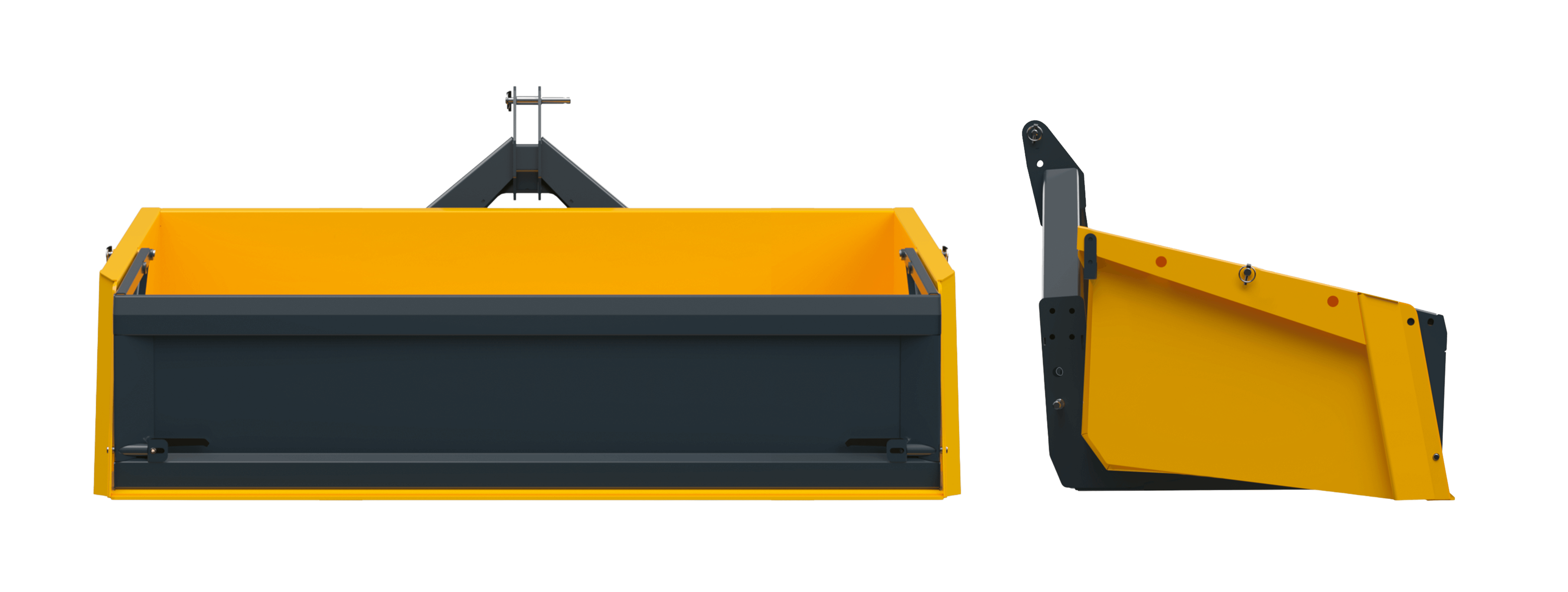

200x100

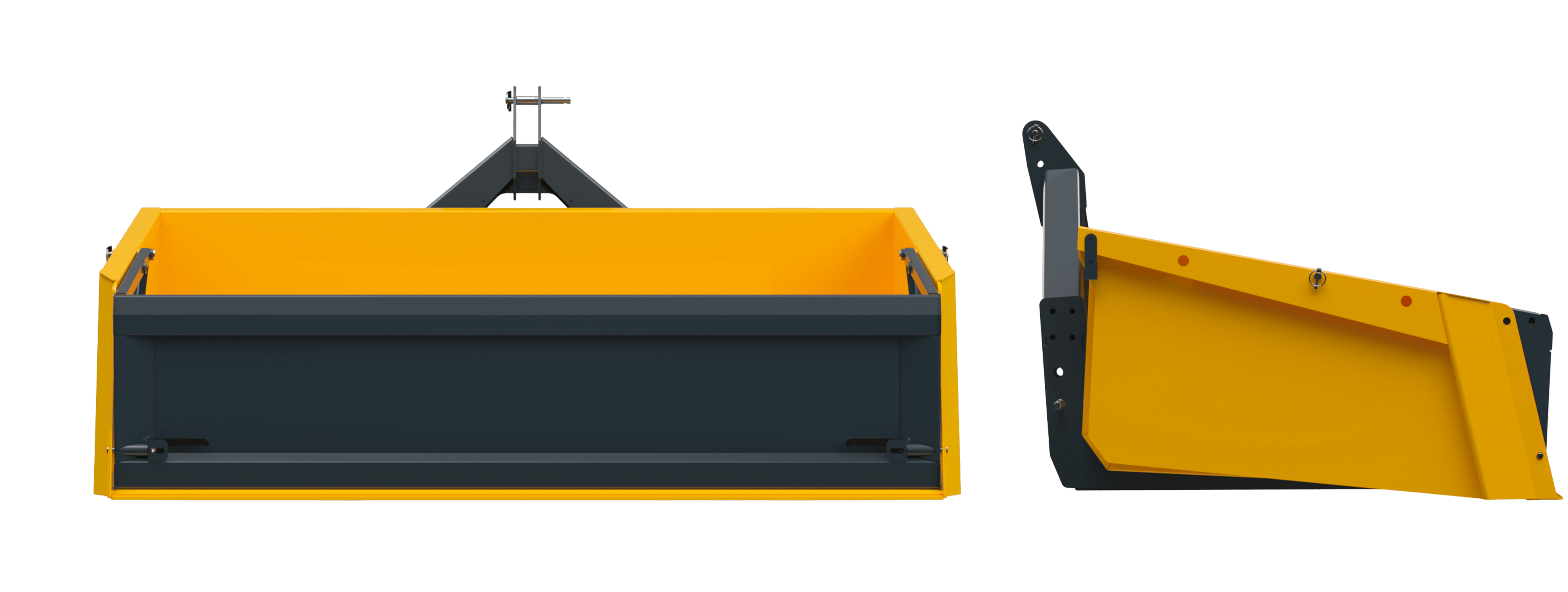

200x125

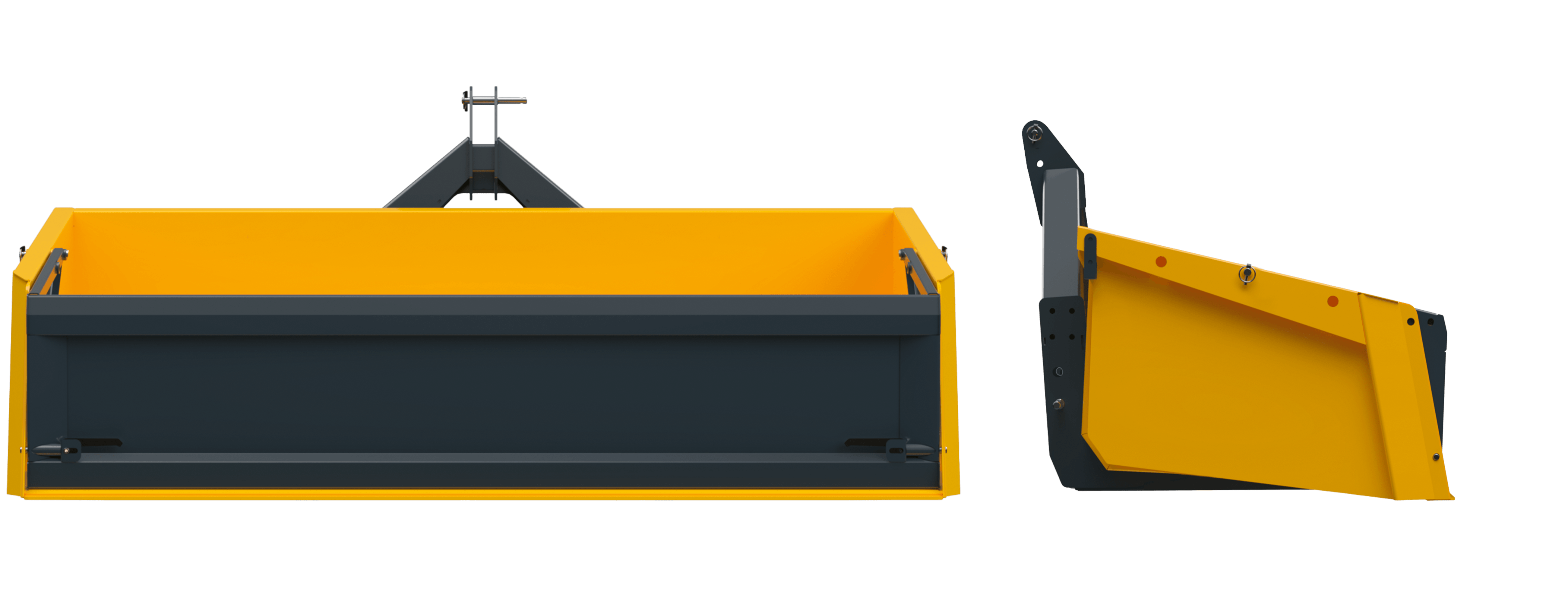

220x100

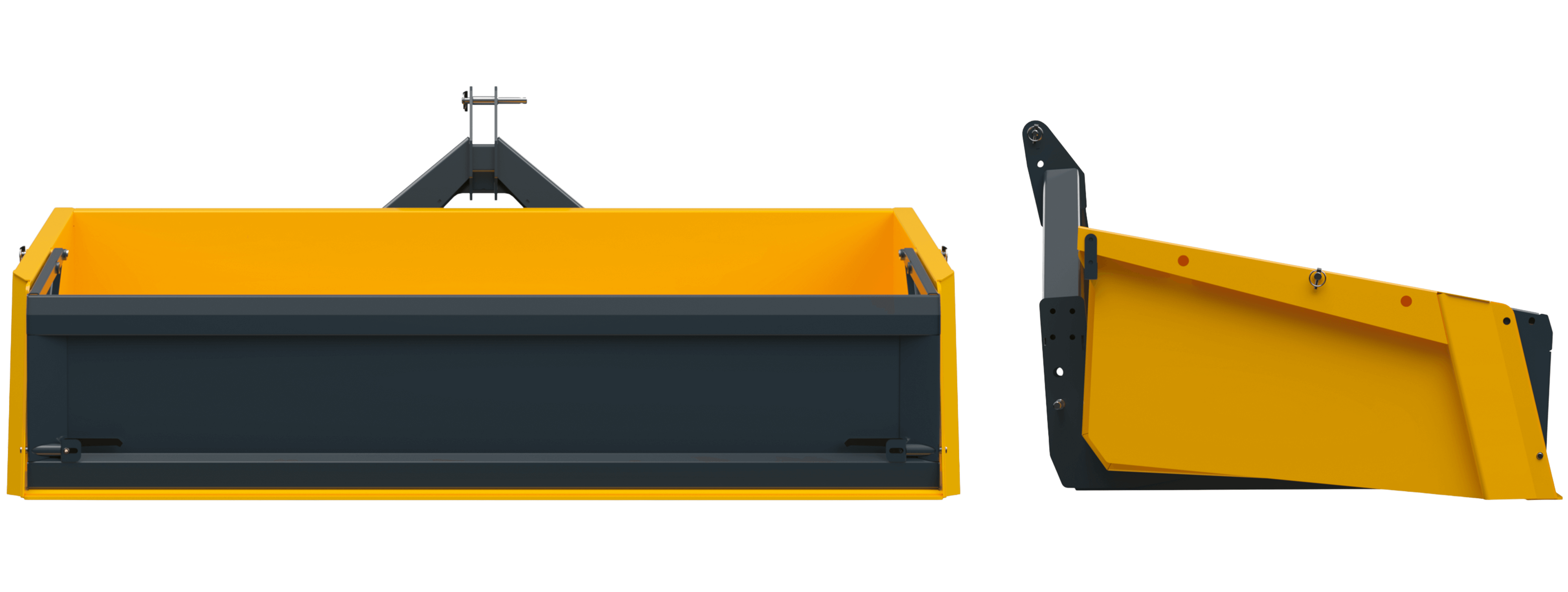

220x125

Optional equipment

Front mounting bracket
Front mounting bracket
Chainsaw holder
Chainsaw holder
Height extensions
Height extensions

Technical data

Model
 180x100 180x125 200x100 200x125 220x100 220x125
Load capacity (kg) 2500 3500 2500 3500 2500 3500
Width (mm) 1800 1800 2000 2000 2200 2200
Length (mm) 1000 1250 1000 1250 1000 1250
Height (mm) 570/450 600/450 570/450 600/450 570/450 600/450
Recommended min. tractor power (kW/HP) 30-45/40-60 45-75/60-100 30-45/40-60 45-75/60-100 30-45/40-60 45-75/60-100
Linkage category I, II, F I, II, F I, II, F I, II, F I, II, F I, II, F
Weight (kg) 335 370 350 390 365 410
Accessories
Model
 180x100 180x125 200x100 200x125 220x100 220x125
Foldable rear wall ⚫ ⚫ ⚫ ⚫ ⚫ ⚫
Euro linkage (front mounting) bracket ⚪ ⚪ ⚪ ⚪ ⚪ ⚪
Chainsaw holder ⚪ ⚪ ⚪ ⚪ ⚪ ⚪
Side height extension ⚪ ⚪ ⚪ ⚪ ⚪ ⚪

● - Standard, ○ - Option, / - Not possible, F - Front mounting
