The Terra Funk remote controllers are optimally compatible with Uniforest’s forestry winches.

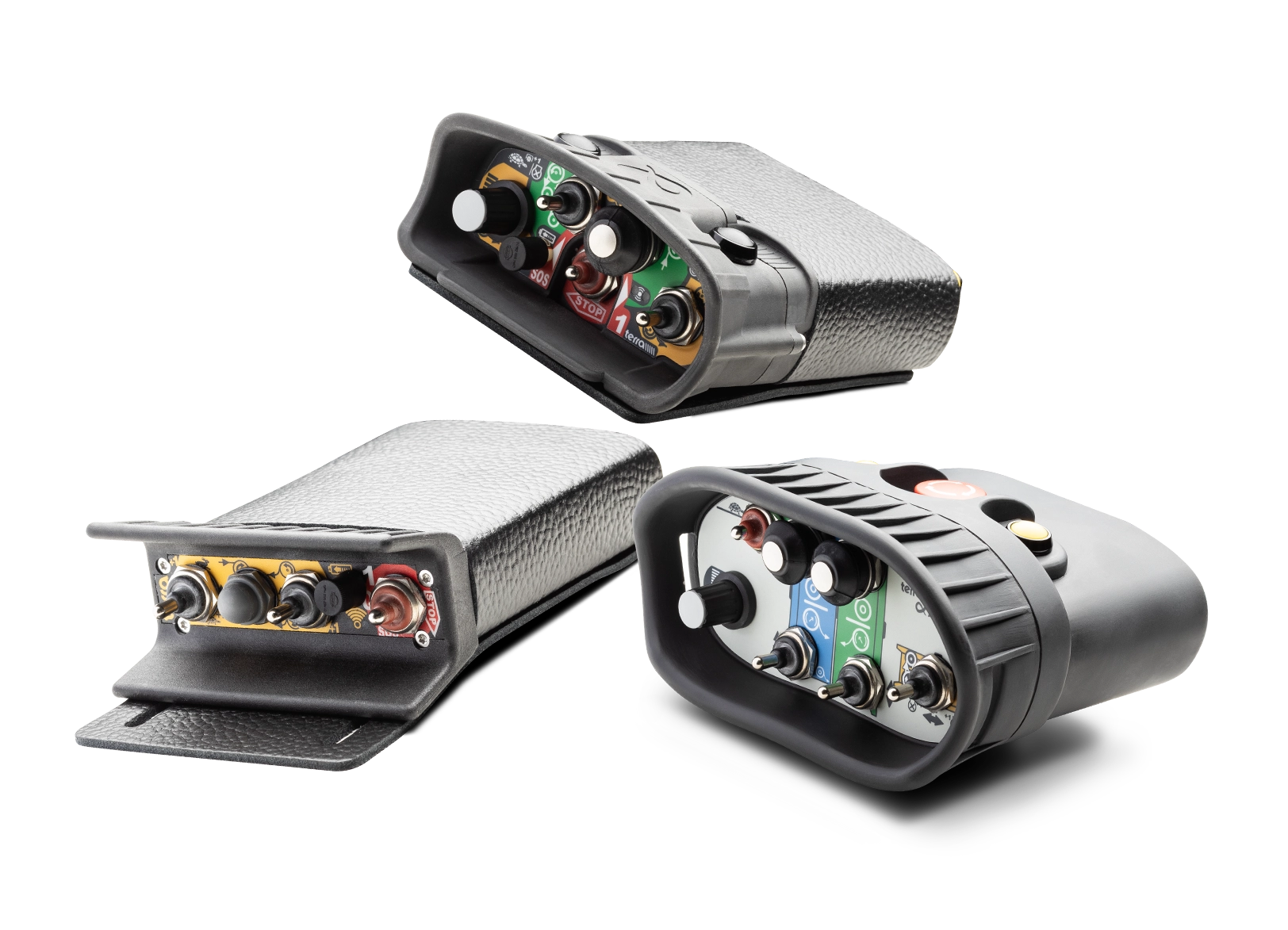

Terra Funk

About the remote control

The Terra Funk remote control is compatible with Uniforest forestry winches. Terra FA5-D1P UNI and Red Dot awarded UNILINK remote controls set a new standard for safe and efficient tractor wood manipulation, as they were developed exclusively for our winches. For double-drum winches, there are two of the top Terra models available: TERRA ALPHA6 UNI and TERRA ALPHA7 UNI, also adapted to be used with all functions of PROFI winches, such as proportional brake, Antikipp, and auxiliary winch functions. For more details, check the Technical data sheet below.

  • The Terra FA5-D1P UNI comes in packages with Premium hydraulic winches, and is available as an option with Standard hydraulic series.
  • UNILINK is standard equipment for all single-drum PROFI winches.
  • TERRA ALPHA6 UNI and TERRA ALPHA7 UNI can be used with the double drum winches.
  • All our remote controllers are also available with the Antikipp (anti-tipping feature) as an option.

Package with the TERRA FA5-D1P UNI

Continuous innovative development of the ergonomics, safety and efficiency of our forestry machines is our promise to you. Thus, hydraulic Premium forestry winches and the Terra FA5-D1P UNI remote controller are now available in a package deal.

More about the Terra FA5-D1P UNI remote control package.
More about the package
UNILINK

UNILINK

The awarded UNILINK remote controller is standard equipment for Profi single-drum winches. It comes with different functions (optional upgrades):

  • Antikipp
  • Proportional brake
  • Auxiliary winch

Are you interested?

Locate your nearest Uniforest representative and get an offer.
Sales points Service points

Possible variants

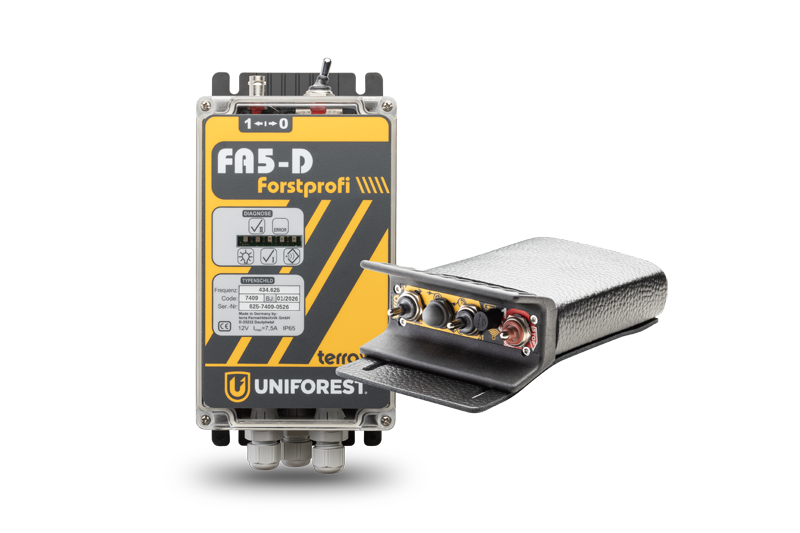

Terra UNI

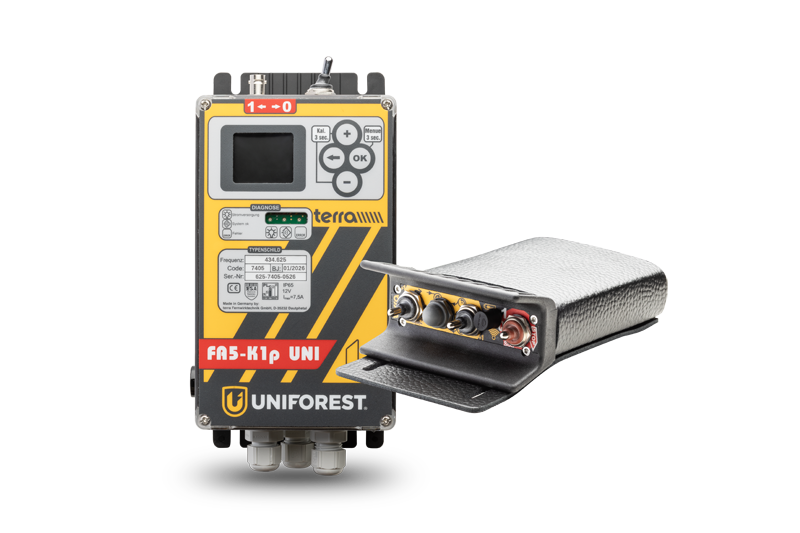

Terra UNI Antikipp

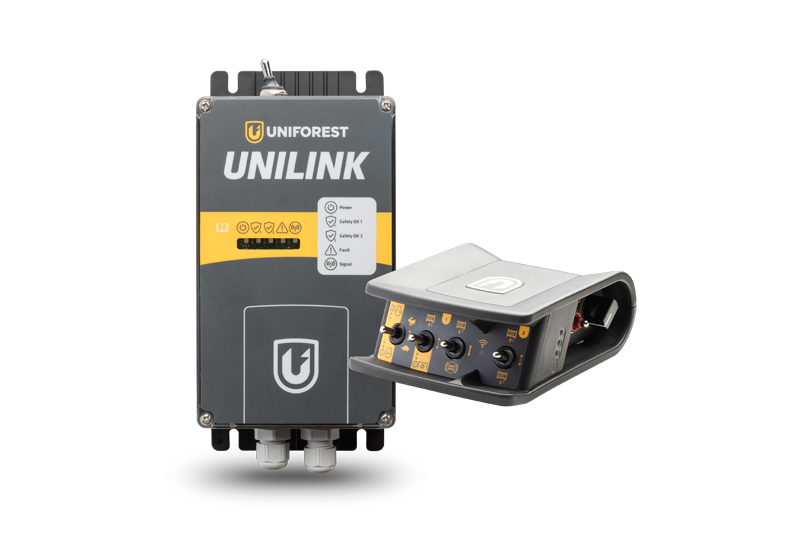

UNILINK

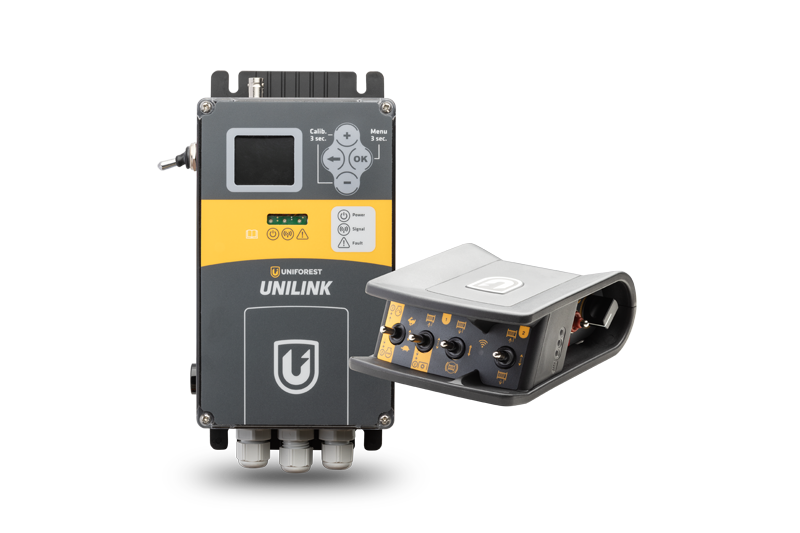

UNILINK Antikipp

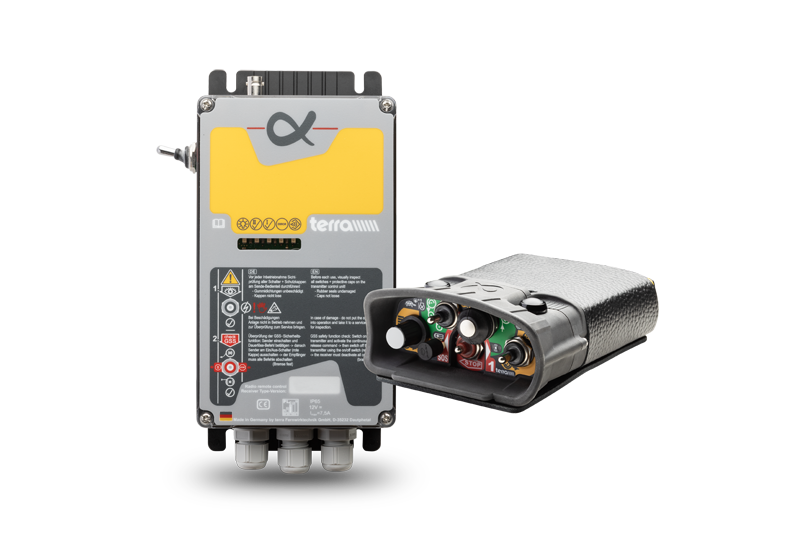

Alpha 6

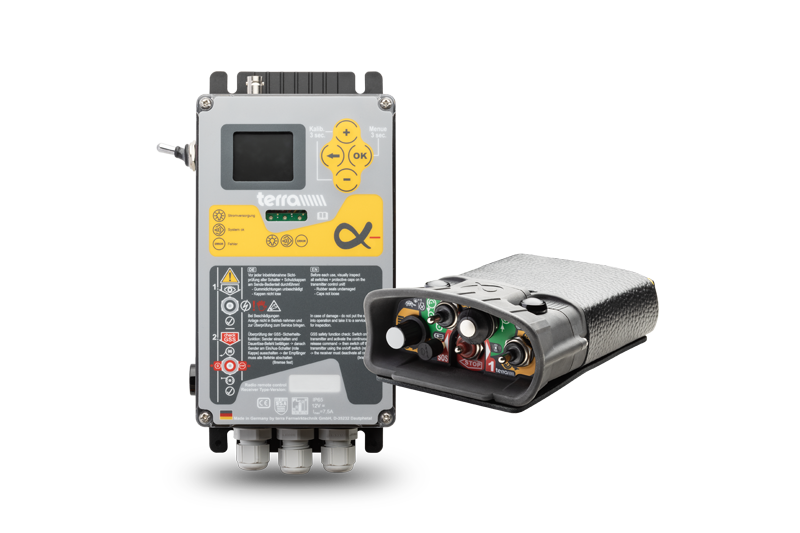

Alpha 6 Antikipp

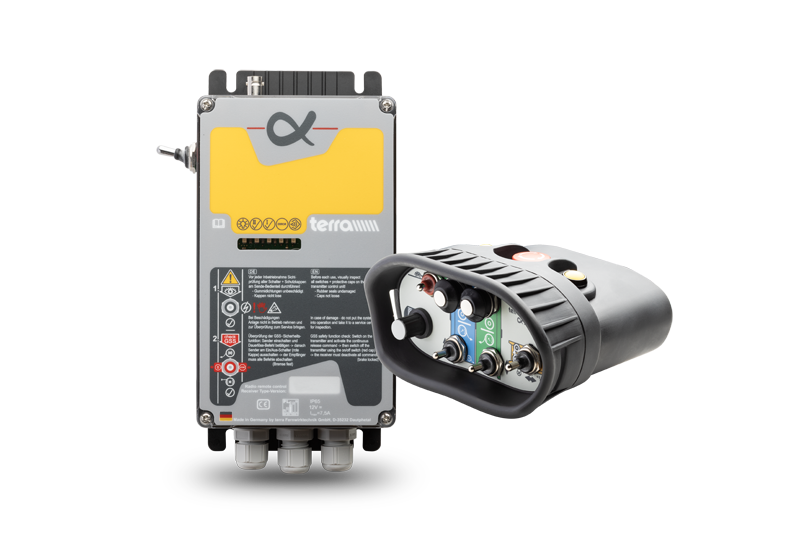

Alpha 7

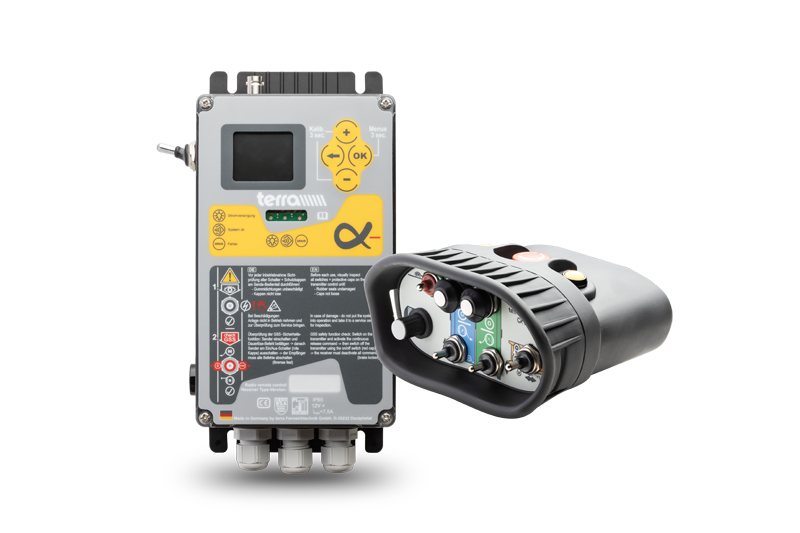

Alpha 7 Antikipp

Optional equipment

Smart Battery Charger SBC-250 for FA5
Smart Battery Charger SBC-250 for FA5
  • smart-charging technology
  • EURO plug 12/24 V in motor vehicles
  • Suitable for models FA5
Mechanical throttle regulation
Mechanical throttle regulation

Technical data

Model
 TERRA FA5 UNI TERRA UNILINK TERRA ALPHA6 UNI TERRA ALPHA7 UNI
Suitable for Single drum winch Single drum winch Single drum winch Double drum winch Double drum winch
Range (approx.) (m) 500 500 500 500
Frequency (MHz) 433, 875–434, 650 433, 875–434, 650 433, 875–434, 650 433, 875–434, 650
Nr. of functions (max.) 8 8 13 13
Operating voltage (V) 12 12 12 12
Capacity of the rechargeable battery/batteries (mA) 600 600 600 600
Type of protection IP 65 IP 65 IP 65 IP 65
Accessories
Model
 TERRA FA5 UNI TERRA UNILINK TERRA ALPHA6 UNI TERRA ALPHA7 UNI
Throttle regulation – mechanical ⚫ ⚫ ⚫ ⚫
Motor START/STOP ⚫ ⚫ ⚫ ⚫
PTO switch on ⚫ ⚫ ⚫ ⚫
Smart 3in1 ⚫ ⚫ ⚫ ⚫
Overturn protection of the tractor (Antikipp with electr. throttle adjustment) ⚪ ⚪ ⚪ ⚪
Warning sound ⚫ ⚫ ⚫ ⚫
Emergency call – ARGUS-2 ⚪ ⚪ ⚪ ⚪
Fast charger ⚪ ⚪ ⚪ ⚪
Potentiometer for proportional brake / ⚪ ⚪ (only for single-drum winch) ⚪
Auxiliary winch commands ⚪ ⚪ ⚪ (only for single-drum winch) ⚪

● - Standard, ○ - Option, / - Not possible
