The Unicator shows up-to-date information on the volume of firewood being processed. Measuring wood with sensors and calculating the amount of firewood produced is possible on Uniforest's TITANs or other firewood processors.

UNICATOR

About the machine

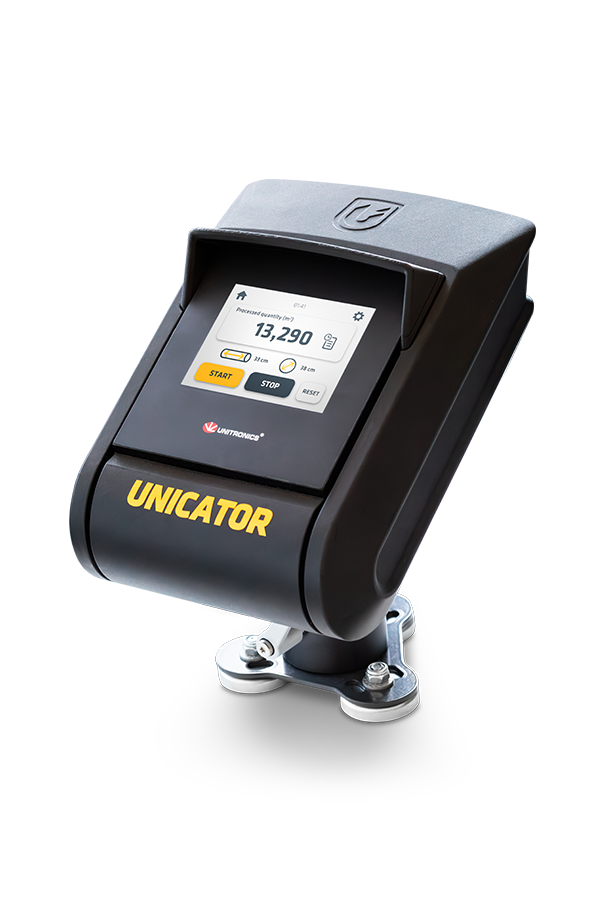

UNICATOR is a tool that measures the amount of firewood from the log while it is being cut and split in a firewood processor. The Unicator is connected to a 12- or 230-volt power supply and is operated via a touchscreen. The Unicator measures the data for calculating the volume of split wood using a sensor that measures the logs between the cutting and splitting cycles. It measures the length and diameter, then calculates the volume of every log. Finally, it sums the volumes to get the total quantity of wood prepared.

  • Suitable for all firewood processors
  • Can be connected to a 12- or 230-volt power supply
  • Mounted on an adjustable holder
  • Ultrasonic and inductive sensors
  • Operated by a touchscreen
  • Displays real-time data and history


Screens


Processed quantity
Processed quantity
Settings
Settings
Log length
Log length
Sensor calibration
Sensor calibration
Machine selection
Machine selection
Available languages
Available languages

Are you interested?

Locate your nearest Uniforest representative and get an offer.
Sales points Service points

Technical data

Model
 UNICATOR
Operating voltage (V) 12
Type of protection IP 65
Width (mm) 150
Depth (mm) 100
Height (mm) 210
Weight (kg) 2,5
Accessories
Model
 UNICATOR
Connecting 3-pole cable 12V ⚫
Connecting cable 230 V ⚫
Ultrasonic sensor ⚫
Inductive sensor ⚫
Flexible bracket ⚫

● - Standard, ○ - Option, / - Not possible
