Firewood processors
TITAN 43/20
Firewood processors

TITAN 43/20

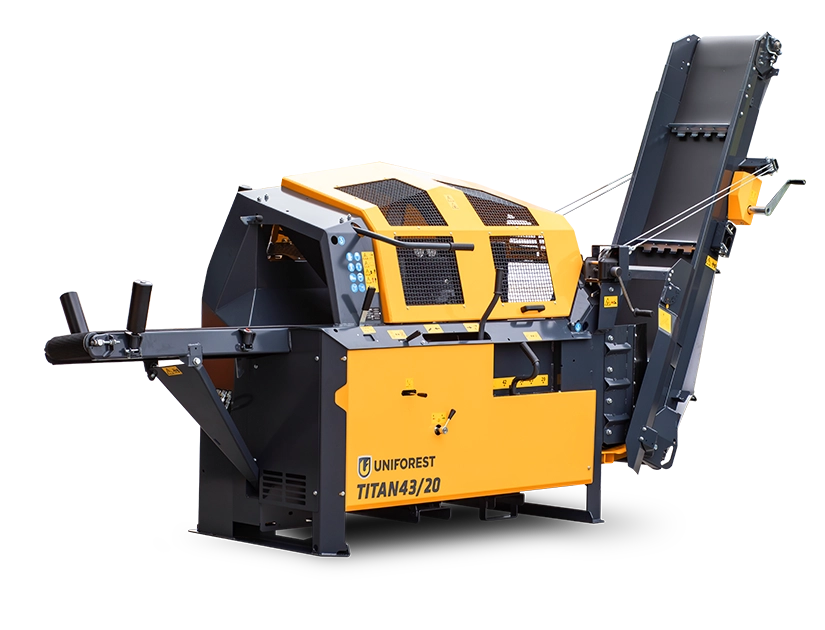

Firewood processor TITAN 43/20 standard with mechanical control cuts logs with a diameter of 43 cm with a strong and powerful harvest chainsaw bar and a splitting force of 20 t.

TITAN 43/20

About the machine

Compact and ergonomically designed firewood processor TITAN 43/20 standard is cutting logs with a strong and durable harvest chainsaw bar. It is mechanically operated. The drive is possible via PTO, electric motor or a combination of both. With its compact and ergonomic shape it is suitable for domestic use.

  • Splitting force 20t
  • Mechanical operation
  • Cuts with a harvester chainsaw bar
  • Compact and ergonomic
1
Log movement handle on the log deck
2
Conveyor belt speed regulation
Titan 43/20
1
2
Titan 43/20

Log movement handle on the log deck

Conveyor belt speed regulation

Chainsaw bar cutting

Chainsaw bar cutting

Durable and powerful harvest chainsaw bar.

Lifting table
Lifting table
Hydraulic clamp holds log during cutting.
Hydraulic clamp holds log during cutting.
Log stabilizer
Log stabilizer

1. Log stabilizer handle.

2. Handle for manual activation/ deactivation of log splitting.

Handle for optional deactivation
Handle for optional deactivation

Handle for optional deactivation of log retaining plate.

Saw activation handle
Saw activation handle

Activate or deactivate the saw easily by a handle on the dashboard.

Heigth adjusting lever
Heigth adjusting lever

Lever for adjusting knife height.

Adjustable log length
Adjustable log length

Splitting length: 25, 33, 40, 50cm

Oil tank
Oil tank

Oil tank for automatic chain lubrication with an oil level indicator.

1. The pressure gauges indicate the splitting pressure and the system pressure for auxiliary functions.

2. Chain lubrication adjustment system.

Mechanical winch
Mechanical winch

Mechanical winch for adjusting conveyor height.

Hydraulically adjustable height of the splitting knife
Hydraulically adjustable height of the splitting knife

Splitting knife 2-4, 2-6 or 2-8

Splitting knife 2-12 - option

Separation grill before conveyor
Separation grill before conveyor

Separates smaller pieces that are produced as a side effect of cutting and splitting.

Are you interested?

Locate your nearest Uniforest representative and get an offer.
Sales points Service points

Possible variants

TITAN 43/20 CD
TITAN 43/20 E
TITAN 43/20 CD-E

Optional equipment

Oil cooler
Oil cooler

Meant for persons who use the machine for longer periods of time with no breaks in-between. It prevents oil overheating.

Oil heater
Oil heater

Oil heater pre-heats the oil, when the machine is idle, for easier start-up. It is only available for the electro motor variant. The PTO driven variant requires no oil heater.

Separator
Separator

The extremely light separator (22kg) allows the wood to fall on the trailer or in the bag while keeping the surroundings clean (free of sawdust).

Technical data

Model
 CD E CD+E
Drive PTO (tractor drive) electro motor PTO (tractor drive)/electro motor
Max. cutting diameter (mm) 430 430 430
Splitting force (kN/t) 200/20 200/20 200/20
Log length (cm) 25 33 40 50 25 33 40 50 25 33 40 50
Electromotor power (kW) - 15 15
Recommended tractor power for drive (kW/hp) 30/40 - 30/40
Recommended tractor power for transport (kW/hp) 60/80 60/80 60/80
PTO speed (from–to) (min-1) 420–460 420–460 420–460
Linkage category II II II
Control mechanical mechanical mechanical
Oil quantity (l) 100 100 100
Telescopic conveyor belt slew (L/R ± 15°) 15 15 15
Telescopic conveyor belt width (mm) 420 420 420
Telescopic conveyor belt length (m) 5 5 5
Feed-in conveyor belt height (mm) 965 965 965
Feed-in conveyor belt length (mm) 2000 2000 2000
Width (mm) 2550 2580 2580
Depth (mm) 1280 1280 1280
Height (mm) 2650 2650 2650
Weight (kg) 1220 1250 1265
Accessories
Model
 CD E CD+E
Cast iron pump ⚫ ⚫ ⚫
Splitting knife 2-4 ⚫ ⚫ ⚫
Splitting knife 2-6 ⚪ ⚪ ⚪
Splitting knife 2-8 ⚪ ⚪ ⚪
Splitting knife 2-12 ⚪ ⚪ ⚪
Oil cooler ⚪ ⚪ ⚪
Oil heater / ⚪ ⚪
Speed regulation for conveyor belt / / /
Hydraulically adjustable conveyor belt / / /
Foldable lifting table LT650 ⚪ ⚪ ⚪
Separator ⚪ ⚪ ⚪

● - Standard, ○ - Option, / - Not possible
