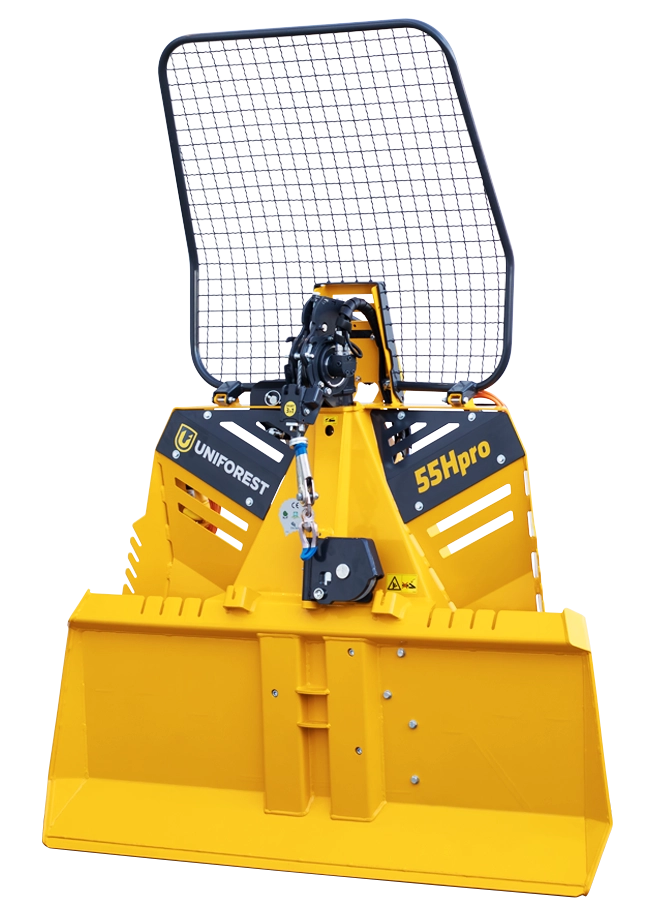

Forestry winch 55 H / Hpro

The 55 H / Hpro hydraulic forestry winch with a pulling force of 5.5t can be fitted with an unwinding device (Hpro) or without (H).  Hydraulic winch 55 Hpro is our best-selling winch.

55 H / Hpro

About the machine

The 55 Hpro hydraulic forestry winch with a pulling force of 5.5t makes it easy to use due to the unwinding device and functions AUTO STOP and SMART 3in1. The work is done via control console or remote control. A foldable window guard makes transport easier. A recognizable winch design with a durable construction and a compact butt plate prevents wear and makes it easy to work with. The 55 H model has no unwinding device.

More details and features of the 55Hpro are also available in an animated video of a complete 3D model.

  • SMART 3in1
  • AUTO STOP function
  • Unwinding device
  • Control console
  • Plenty of room on the front side of the butt plate
  • Foldable window guard
  • Durable construction
  • Superior design with an ergonomic shape


Package with the TERRA FA5-D1P UNI

Continuous innovative development of the ergonomics, safety and efficiency of our forestry machines is our promise to you. Thus, forestry winches and the Terra FA5-D1P UNI remote controller are now available in a package deal. More about the winch with Terra FA5-D1P UNI remote controller package.

More about the Terra FA5-D1P UNI remote control package.
SMART 3in1

SMART 3in1

(1) When pulling logs with a tractor, you may encounter some obstacles on the road (hill, roots etc.). If the tractor is not able to overcome these obstacles, the unwinding function can be switched into the mode without the assistance of the unwinding device and you can continue driving with a taught wire rope between the winch and the load. (2) The unwinding device can be turned on and off without delay (the standard model has a 1.5 sec. delay). (3) The SMART 3in1 function ensures additional tension of the wire rope between the unwinding pulley and drum.

This function is only available with the remote controls Teleradio, Terra funk and manual console.

Multi-plate clutch
Multi-plate clutch

Multi-plate clutch, made of thicker clutch lining material, prevents wear.

Pump drive
Pump drive

Hydraulic pump is gear driven. High-pressure oil filter preventing dirt from entering the hydraulic block.

Unwinding device and AUTO STOP

Unwinding device and AUTO STOP

To make the wire rope unwinding easier you can choose a winch with an integrated unwinding device. This type of winch also guarantees a constant tension of the wire rope between the unwinding pulley and the drum, thus preventing damage to the drum or pulley and enabling a longer service life.

AUTO STOP function (limit switch) automatically stops the function of winding the wire rope on the drum. This function prevents mechanical damages of the unwinding device, entanglement and wire rope damages.

HAWE
HAWE

HAWE electromagnetic control valves with high pressure filter in the control block. Hydraulic components are galvanically corrosion protected. The oil tank is made of stainless steel.

Dedicated valve
Dedicated valve

Dedicated valve for firm winding wire rope on the drum. Control electronics for tensioned wire rope during unwinding.

Wire ropes
Wire ropes

Recommended wire rope thickness according to the maximum wire rope length:

  • 10mm/70m

The wire rope must be up to standard, the breaking force of the wire rope must be at least twice as much as the pulling force.

Control console
Control console

Control console has automatic transition from pulse to continuous off mode.

Holders
Holders

Chainsaw and pickaxe holder.

Foldable window guard
Foldable window guard

Foldable window guard for easy transportation.

Sealed ball bearings
Sealed ball bearings

Lubrication free sealed ball bearings (FAG) ensure uninterrupted unwinding and winding of the wire rope; no lubrication is required.

Locking safety pin
Locking safety pin

A locking safety pin ensures the winch rope remains on the pulley. A magnetic holder secures the lower pulley during transportation.

Plenty of room
Plenty of room

Plenty of room on the front side of the butt plate to keep the dirt from tractor wheels away from the chains and other accessories.

Two different heights
Two different heights

Two different heights of attachment to the tractor with a reliable protection preventing the linkage mounting pins from falling out (support leg attachment).

Prebrake
Prebrake

Easy and precise adjustment of the prebrake.

Are you interested?

Locate your nearest Uniforest representative and get an offer.



The unwinding device on the 55Hpro forestry winch enables a constant wire rope tension and a precise winding on the drum.

Nathan Waterfield

Technical data

Model
55 H 55 Hpro
Pulling force (kN) 55 55
Braking force (kN) 69 69
Wire rope medium speed (540 min-1) (m/s) 0.6 0.6
Drum capacity - wire rope length/diameter (m/mm) 110/10 90/11 75/12 110/10 90/11 75/12
Standard wire length/diameter (m/mm) 70/11 70/11
Recommended tractor power (kW/hp) 40-55/54-75 40-55/54-75
Max. RPM (min-1) 540 540
Linkage category I, II I, II
Control Electro-hydraulic Electro-hydraulic
Number of clutch plates (pcs) 3 3
Butt plate width/weight without wire rope (mm/kg) 1590/409 1800/426 1590/435 1800/453
Depth (mm) 490 490
Height (mm) 1480 1580
Height with window guard (mm) 2300 2300
Accessories
Model
55 H 55 Hpro
Remote control
Unwinding device /
Smart 3in1 /
Auto Stop
Valve that ensures constant wire rope tension /
Valve for wire rope unwinding speed regulation /
Lower pulley
Trailer hitch
Foldable window guard
Chainsaw holder
Pickaxe holder

● - Standard, ○ - Option, / -Not possible
