Log splitter
TITANIUM 11
Log splitter

TITANIUM 11

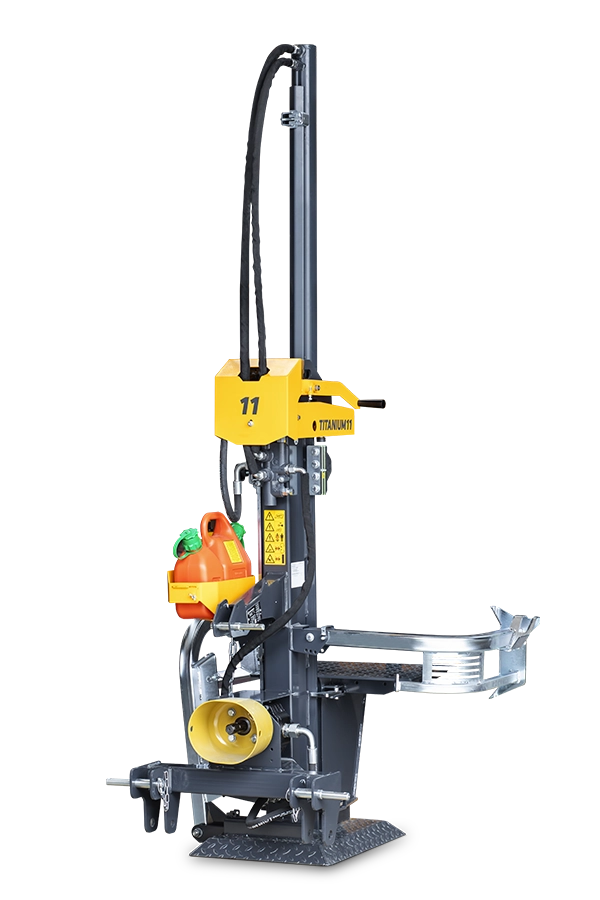

The log splitter TITANIUM 11 with splitting force of 10 t is our smallest log splitter.

TITANIUM 11

About the Machine

Log splitters TITANIUM 11 can have tractor (PTO) drive, they can be electric log splitters or have combination of tractor (PTO) and electric motor drive. With the axe quickly returning to its original position and autospeed valve regulating speed automatically the splitting is safe, fast and easy. or quiet operation. Cast iron hydraulic pump ensures quiet operation of log splitter.

  • Quick and effective splitting
  • Autospeed valve
  • Cast iron hydraulic pump
Cast iron hydraulic pump

Cast iron hydraulic pump

Cast iron hydraulic pump ensures quiet operation and long service life of the log splitter. - Standard

Autospeed and a double bottom tank
Autospeed and a double bottom tank

1. Autospeed (AS) valve for automatic speed regulation.

2. Double bottom tank, which prevents oil spilling.

Automatic deactivation of the knife
Automatic deactivation of the knife

The three position deactivation switch prevents knife and splitting table damages.

Log lifter
Log lifter

The log lifter puts the log into working position.

Transport
Transport

Wheels and handle for manual transport.

Serrated lever
Serrated lever

The serrated lever holds the log in place for easy and accurate splitting.

Are you interested?

Locate your nearest Uniforest representative and get an offer.



Optional equipment

Log table with an extension
Log table with an extension

Single or double log table with an extension.

Adjustable tank holder
Adjustable tank holder

Adjustable tank holder - suitable for all fuel tank types.

Technical data

Model
CD E CD+E
Drive PTO (tractor drive) electro motor PTO (tractor drive)/electro motor
Splitting force (t) 10 10 10
Cylinder movement (mm) 1100 1100 1100
Splitting height (mm) 400/580/1150 400/580/1150 400/580/1150
Max. log length (mm) 1150 1150 1150
Electromotor power (kW) - 4 4
Recommended tractor power (kW/hp) 15/20 - 15/20
Max. RPM (min-1) 540 - 540
Linkage category I, II I, II I, II
Splitting speed H1/H2/PH (cm/s) 22/11/22 13/6/13 22/11/22
Splitting time H1/H2/PH (s/1100mm) 5/10.5/5 8/14/6 5/10.5/5
Oil quantity (l) 15 15 15
Length (mm) 900 900 900
Width (mm) 630 630 630
Height in transport position (mm) 1850 1850 1850
Height in working position (mm) 2680 2680 2680
Weight (kg) 210 240 280
Accessories
Model
CD E CD+E
Cast iron pump /
Autospeed
Single log table with an extension
Double log table with an extension
Fuel tank holder
Manual transport kit

● - Standard, ○ - Option, / - Not possible

H1 - Forward working movement of the cylinder

H2 - Quick forward movement of the cylinder

PH - Return speed
