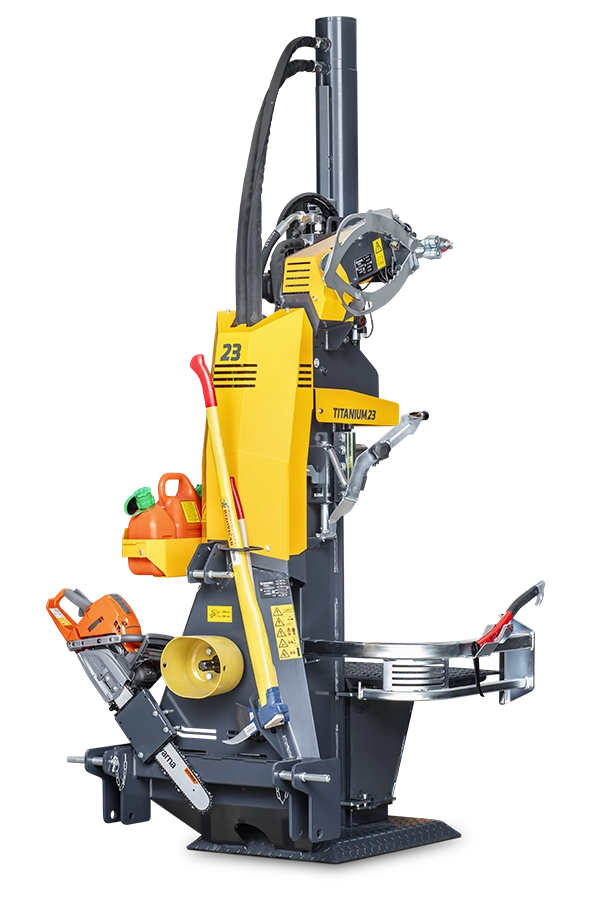

Log splitter Titanium 23

The log splitter Titanium 23 with a splitting force of 21 t is technologically advanced and of high quality. As acknowledgment to its superior design, log splitter TITANIUM 23 was rewarded with German Design Award Special in 2017.

Titanium 23

About the Machine

Log splitters Titanium 23 can have tractor (PTO) drive, they can be electric log splitters or have combination of tractor (PTO) and electric motor drive. With the axe quickly returning to its original position and the AutoSpeed valve regulating speed automatically, the splitting is safe, fas,t and easy. Each model has plenty of storage area for additional equipment. The CDF model that stand out is tractor (PTO) powered log splitters with a front or rear attachment.

  • Quick and effective splitting
  • AutoSpeed valve
  • Cast iron hydraulic pump
  • Galvanized oil tank
  • Many holders for additional equipment
  • CDF model with a front or rear attachment
The galvanized oil tank inside main frame

The galvanized oil tank inside main frame

The galvanized oil tank is placed inside the log splitter main frame, preventing oil from spilling and enabling easy maintenance of the tank.

Cast iron hydraulic pump
Cast iron hydraulic pump

Cast iron hydraulic pump ensures quiet operation and long service life of the log splitter. – Standard

Front and rear attachment – model CDF
Front and rear attachment – model CDF

1. Front PTO attachment: rotation to the left, maximum PTO drive shaft speed 1000 rpm.

2. Rear PTO attachment: rotation to the right, maximum PTO drive shaft speed 540 rpm.

Autospeed and a double bottom tank
Autospeed and a double bottom tank

1. Autospeed (AS) valve for automatic speed regulation.

2. Double bottom tank, which prevents oil spilling.

Automatic deactivation of the knife
Automatic deactivation of the knife

The three position deactivation switch prevents knife and splitting table damages.

Log lifter
Log lifter

The log lifter puts the log into working position.

Holders
Holders

Holders for chainsaw (1), pickaxe (2) and small pickaxe (3).

Serrated lever
Serrated lever

The serrated lever holds the log in place for easy and accurate splitting.

Are you interested?

Locate your nearest Uniforest representative and get an offer.
Sales points Service points


Possible variants

TITANIUM 23 CD
TITANIUM 23 CDF
TITANIUM 23 E
TITANIUM 23 CD+E

Optional equipment

Log table with an extension
Log table with an extension

Single or double log table with an extension.

Tank holder
Tank holder

Adjustable tank holder.

Hydraulic winch
Hydraulic winch

Hydraulically or mechanically operated winch.

Scissor grab
Scissor grab

Scissor grab for pulling and handling heavier logs.

Transport
Transport

Wheels and handle for manual transport.

Technical data

Model
 CD CDF E-1 E-2 CD+E
Drive PTO (tractor drive) PTO (tractor drive) electric motor electric motor PTO (tractor drive)/electric motor
Splitting force (t) 21 21 21 21 21
Cylinder movement (mm) 1100 1100 1100 1100 1100
Splitting height (mm) 400/580/1150 400/580/1150 400/580/1150 400/580/1150 400/580/1150
Max. log length (mm) 1150 1150 1150 1150 1150
Electric motor power (kW) - - 5.5 5.5 5.5
Recommended min. tractor power (kW/HP) 30/41 30/41 - - 30/41
Revolutions max. (min-1) 540 540/front 1000 - - 540
Linkage category I, II I, II I, II I, II I, II
Splitting speed H1/H2/PH (cm/s) 28/15/28 28/15/28 10/5/10 10/4/20 28/15/28
Splitting time H1/H2/PH (s/1100mm) 3.9/6.6/3.9 3.9/6.6/3.9 10/17/10 10/35/5 3.9/6.6/3.9
Oil capacity (l) 40 40 40 40 40
Length (mm) 1150 1150 1150 1150 1150
Width (mm) 828 828 828 828 828
Height in transport position (mm) 1900 1900 1900 1900 1900
Height in transport position with winch (mm) 2150 2150 2150 2150 2150
Height in working position (mm) 2780 2780 2780 2780 2780
Weight (kg) 470 470 480 480 520
Accessories
Model
 CD CDF E-1 E-2 CD+E
Cast iron pump ⚫ ⚫ / / ⚫
2-stage gear pump / / / ⚫ ⚪
Automatic speed control (AUTOSPEED) ⚫ ⚫ ⚫ ⚫ ⚫
Radio controlled hydraulic winch ⚪ ⚪ / / ⚪
Mechanically operated hydraulic winch ⚪ ⚪ / / ⚪
Single log table with an extension ⚪ ⚪ ⚪ ⚪ ⚪
Two-tier table with extension ⚪ ⚪ ⚪ ⚪ ⚪
Chainsaw holder ⚪ ⚪ ⚪ ⚪ ⚪
Fuel tank holder ⚪ ⚪ ⚪ ⚪ ⚪
Kit for manual transport ⚪ ⚪ ⚪ ⚪ ⚪
Holders for axe, pickaxe, and small pickaxe ⚫ ⚫ ⚫ ⚫ ⚫
Anti-slip chock ⚪ ⚪ ⚪ ⚪ ⚪

● - Standard, ○ - Option, / - Not possible

H1 - Quick forward movement of the cylinder

H2 - Forward working movement of the cylinder

PH - Return speed
