Log splitter
Log splitter Titanium 14
Log splitter

Log splitter Titanium 14

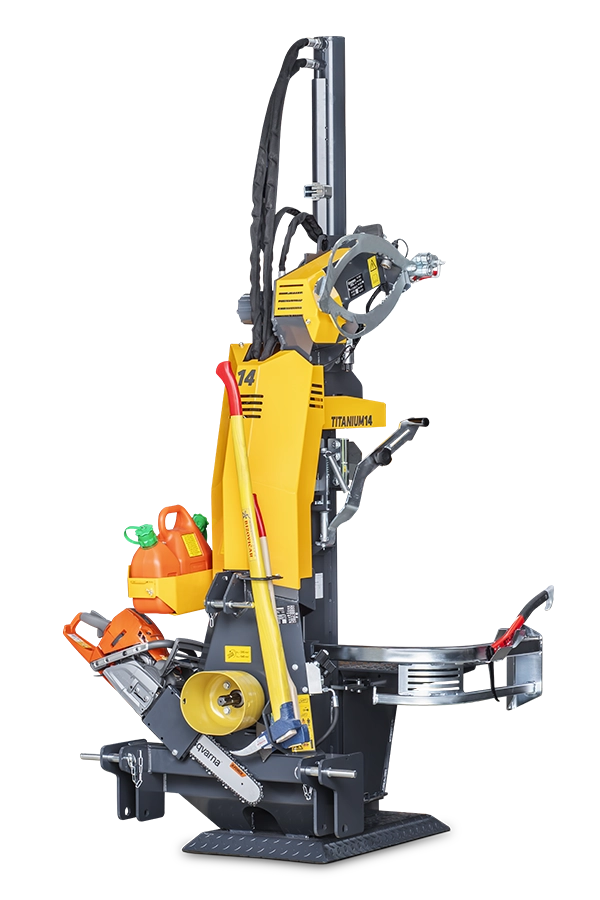

The log splitter Titanium 14 with a splitting force of 13 t is technologically advanced and of high quality.

Titanium 14

About the machine

Log splitters Titanium 14 can have tractor (PTO) drive, they can be electric log splitters or have a combination of a tractor (PTO) and electric motor drive. With the axe quickly returning to its original position and autospeed valve regulating speed automatically the splitting is safe, fast, and easy.

  • Quick and effective splitting
  • Autospeed valve
  • Cast iron hydraulic pump
  • Many holders for additional equipment
  • TR model powered by a petrol engine
Cast iron hydraulic pump

Cast iron hydraulic pump

Cast iron hydraulic pump ensures quiet operation and long service life of the log splitter. – Standard

Autospeed and a double bottom tank
Autospeed and a double bottom tank

1. Autospeed (AS) valve for automatic speed regulation.

2. Double bottom tank, which prevents oil spilling.

Automatic deactivation of the knife
Automatic deactivation of the knife

The three position deactivation switch prevents knife and splitting table damages.

Log lifter
Log lifter

The log lifter puts the log into working position.

Holders
Holders

Holders for chainsaw (1), pickaxe (2) and small pickaxe (3).

Serrated lever
Serrated lever

The serrated lever holds the log in place for easy and accurate splitting.

Are you interested?

Locate your nearest Uniforest representative and get an offer.
Sales points Service points



Possible variants

TITANIUM 14 CD
TITANIUM 14 E
TITANIUM 14 CD+E

Optional equipment

Log table with an extension
Log table with an extension

Single or double log table with an extension.

Tank holder
Tank holder

Adjustable tank holder.

Hydraulic winch
Hydraulic winch

Hydraulically or mechanically operated winch.

Scissor grab
Scissor grab

Scissor grab for pulling and handling heavier logs.

Transport
Transport

Wheels and handle for manual transport.

Technical data

Model
 CD E CD+E
Drive PTO (tractor drive) electric motor PTO (tractor drive)/electric motor
Splitting force (t) 13 13 13
Cylinder movement (mm) 1100 1100 1100
Splitting height (mm) 400/580/1150 400/580/1150 400/580/1150
Max. log length (mm) 1150 1150 1150
Electric motor power (kW) - 5.5 5.5
Recommended min. tractor power (kW/HP) 21/29 - 21/29
Revolutions max. (min-1) 540 - 540
Linkage category I, II I, II I, II
Splitting speed H1/H2/PH (cm/s) 29/15/29 14/7/14 29/15/29
Splitting time H1/H2/PH (s/1100mm) 3.8/7.2/3.8 8/13/8 3.8/7.2/3.8
Oil capacity (l) 20 20 20
Length (mm) 1050 1050 1050
Width (mm) 824 824 824
Height in transport position (mm) 1850 1850 1850
Height in transport position with winch (mm) 2050 2050 2050
Height in working position (mm) 2713 2713 2713
Weight (kg) 360 365 395
Accessories
Model
 CD E CD+E
Cast iron pump ⚫ / ⚫
Automatic speed control (AUTOSPEED) ⚫ ⚫ ⚫
Radio controlled hydraulic winch ⚪ / ⚪
Mechanically operated hydraulic winch ⚪ / ⚪
Single log table with an extension ⚪ ⚪ ⚪
Two-tier table with extension ⚪ ⚪ ⚪
Chainsaw holder ⚪ ⚪ ⚪
Fuel tank holder ⚪ ⚪ ⚪
Kit for manual transport ⚪ ⚫ ⚪
Holders for axe, pickaxe, and small pickaxe ⚫ ⚫ ⚫
Anti-slip chock ⚪ ⚪ ⚪

● - Standard, ○ - Option, / - Not possible

H1 - Quick forward movement of the cylinder

H2 - Forward working movement of the cylinder

PH - Return speed
